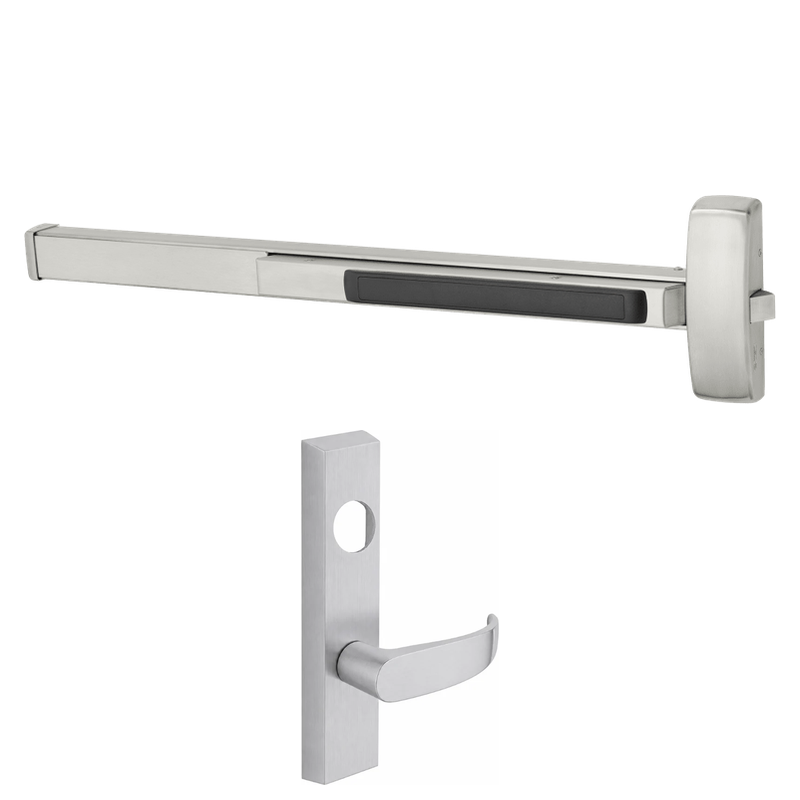

Sargent LC-12-56-8875-F-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-F-ETP-12V is a fire-rated rim exit device engineered for high-traffic commercial openings that require both life-safety compliance and electrified access control. Built with electric latch retraction (ELR) and a fail-safe design, this device retracts the latch on command and unlocks the outside ETP lever trim when power is removed. It fits doors 33" to 36" wide and ships less cylinder, allowing you to match your existing keying system. The 56 prefix indicates a signal switch option, while the key-retracts-latch function provides reliable mechanical override. Ideal for access-controlled entrances, stairwells, and perimeter doors where code-compliant egress is essential.

Features

• Fire-rated rim exit device suitable for labeled door openings requiring positive latching.
• Electric latch retraction allows remote latch release for momentary or sustained access control.
• Fail-safe operation unlocks the outside lever trim when power is removed.
• Key retracts latch for mechanical override of the outside trim.
• Sized for doors measuring 33" to 36" in width.
• Supplied less cylinder for integration with your preferred keying system.
• Less dogging, as required for fire-rated applications.
• Operates on 12V DC for compatibility with common access control power supplies.

Functional Details

This device combines electric latch retraction with fail-safe electrified trim. When power is applied, the latch retracts to allow free passage or remote entry; when power is removed, the ETP lever trim unlocks, permitting entry from the exterior during a power loss for secure, code-compliant operation.

• Electric latch retraction (ELR) retracts the latch electrically for remote access and push-pull operation.
• Fail safe: power off unlocks the outside lever.
• Key retracts latch via the outside cylinder for mechanical override.
• Free egress at all times from the inside via the push bar.

Arm Type Details

The ETP trim is a pull-style electrified lever trim mounted on the exterior of the door. In the fail-safe configuration, the lever becomes operable when power is interrupted, allowing the latch to be retracted by turning the lever for controlled re-entry.

Included Components

The device ships as a complete rim exit assembly with the 8875 chassis, ETP electrified lever trim, and electric latch retraction hardware. A mortise cylinder is not included and must be ordered separately to match your keying requirements.
