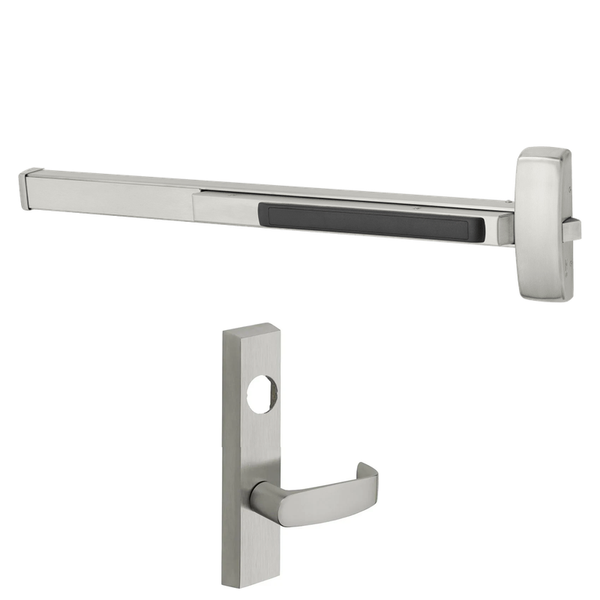

Sargent LC-12-56-8875-G-ETL-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-G-ETL-24V is a heavy-duty electrified fire rated rim exit device engineered for demanding commercial openings up to 43-48" wide. Built with Electric Latch Retraction (ELR), it uses 24V power to retract the latch electronically, allowing for remote access control, automatic operation, and integration with push-button or card reader systems. Its fail safe design unlocks the outside lever when power is removed, supporting both security and life-safety requirements. Designed around the 8800 series platform, this device ships less cylinder and less dogging, making it ideal for institutional, healthcare, and high-traffic applications where reliable egress and controlled access are essential.

Features

• Electric Latch Retraction (ELR) retracts the latch electronically for remote and automated access control.
• Fail safe operation unlocks the outside lever when power is removed for life-safety compliance.
• Fire rated construction suitable for labeled door assemblies without mechanical dogging.
• Sized for wide openings covering 43-48" door widths.
• Operates on 24V power for compatibility with common access control systems.
• Supplied less cylinder, allowing use of your preferred keying system.
• Rim-mounted design for straightforward installation on single or paired doors.

Functional Details

This device combines fail safe lever trim with Electric Latch Retraction. When energized, the latch retracts to permit free passage or motorized operation; when power is lost, the lever unlocks to allow entry while free egress is always maintained from the inside. Key retracts latch functionality is provided through the outside trim.

• Fail Safe: Power off unlocks lever.
• Electric Latch Retraction: Latch bolt is retracted electrically.
• Key retracts latch for outside access.
• Free egress at all times from the egress side.

Included Components

The exit device ships as a fire rated rim unit with electric latch retraction hardware and the 56 group lever trim. A cylinder and dogging are not included and must be ordered separately as needed.
