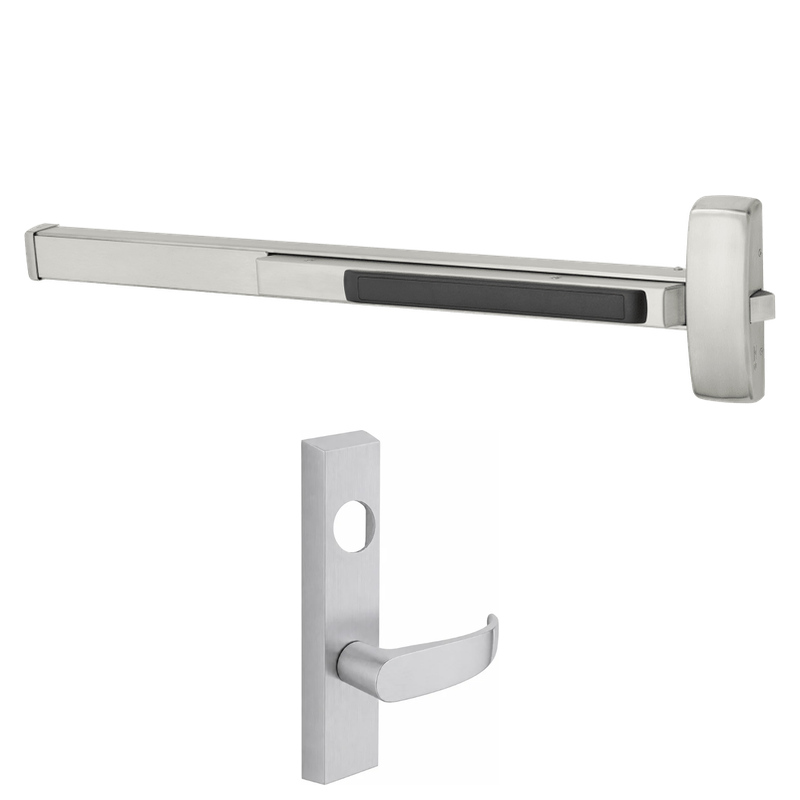

Sargent LC-12-56-8875-G-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-G-ETP-24V is a fire-rated rim exit device engineered for high-traffic openings that demand reliable electrified access control. Built for door widths between 43" and 48", it features electric latch retraction (ELR) powered at 24V, allowing the latch to be pulled back electronically for remote or momentary release. The fail-safe design unlocks the outside lever on power loss, supporting life-safety requirements, while the ET trim with keyed access lets authorized users retract the latch by key. Shipped less cylinder and less dogging for mechanical override on fire doors, this device pairs rugged Sargent construction with dependable, code-compliant performance.

Features

• Electrified rim exit device with 24V electric latch retraction for smooth, powered latch control.
• Fire-rated construction suitable for labeled fire door assemblies.
• Fail-safe operation unlocks the outside lever when power is removed.
• ET (ETP) lever trim provides keyed outside access and latch retraction.
• Sized for 43" to 48" door widths to cover wide openings.
• Supplied less cylinder, allowing use of a preferred mortise cylinder.
• Less dogging, as required for fire-rated applications.

Functional Details

The 56 electric latch retraction function uses a motor-driven mechanism to withdraw the latch bolt electronically, enabling push/pull operation and integration with access control, card readers, or remote release systems. As a fail-safe device, removing power unlocks the exterior lever for free entry.

• Electric latch retraction (ELR) retracts the latch via 24V power.
• Fail safe: power off unlocks the outside lever.
• Key retracts latch through the outside trim.

Arm Type Details

The 8800 series rim exit device mounts to the surface of the door with a flat, low-profile push bar. Depressing the bar retracts the latch for free egress, while the ET trim governs controlled entry from the outside.

Included Components

Device ships with the 8800 series rim chassis, ETP lever trim, and electric latch retraction hardware. A mortise cylinder is not included and must be ordered separately.
