Sargent LC-12-56-8875-J-ETL-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-J-ETL-12V is a fire-rated rim exit device built for demanding commercial openings that require electrified access control. Designed for 37" to 42" door widths, it features electric latch retraction (ETL) powered at 12V, allowing the latch to be retracted remotely for momentary or sustained access. The fail safe configuration unlocks the outside lever when power is removed, making it a strong fit for egress-critical applications. It ships less cylinder to accommodate your preferred keying, uses the J escutcheon trim with key-retraction function, and is supplied less dogging to maintain fire-rated integrity. A dependable choice for secure, code-compliant entrances.

Features

• Fire-rated rim exit device suitable for labeled door and frame assemblies.
• Electric latch retraction (ETL) allows remote retraction of the latch bolt.
• Operates on 12V power for integration with access control systems.
• Fail safe operation unlocks the outside lever when power is lost.
• Sized for 37" to 42" door widths.
• J escutcheon trim with key-retracts-latch function.
• Supplied less cylinder for flexible keying options.
• Furnished less dogging to preserve fire-rated compliance.

Functional Details

The electric latch retraction function uses a 12V current to draw back the latch bolt, enabling push/pull operation or remote release through an access control system. In the fail safe mode, removing power disengages the lock so the outside lever becomes operable, ensuring safe egress and entry during power interruptions.

• Electric Latch Retraction (ETL): retracts the latch electrically for remote or momentary access.
• Fail Safe: power off unlocks the outside lever.
• Key retracts latch via the outside trim.
• Less dogging to maintain fire-rated label integrity.

Included Components

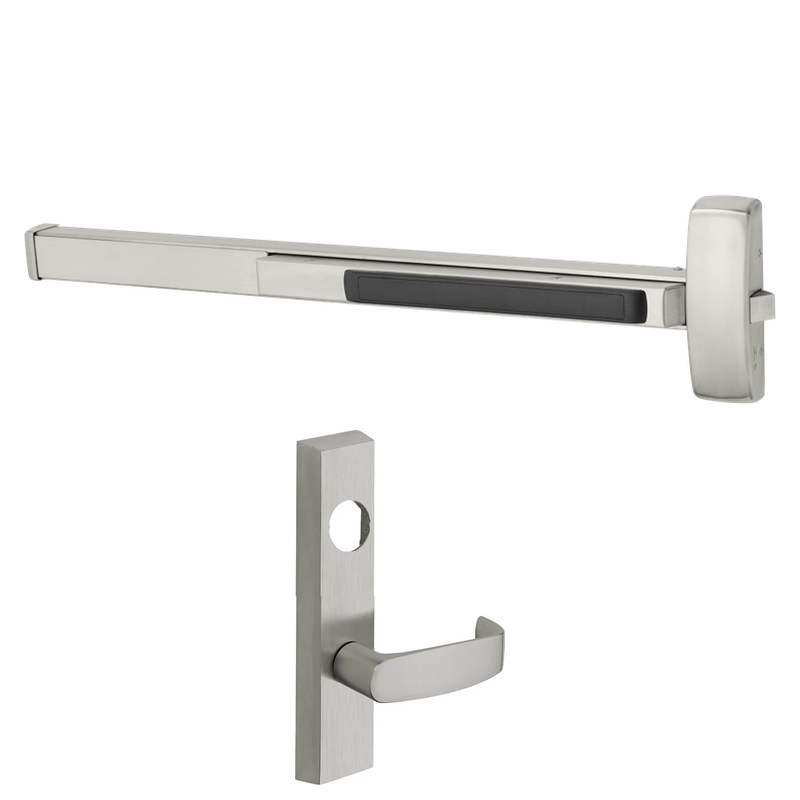

The device includes the 8800 series rim exit chassis with electric latch retraction module, the 700 series J escutcheon lever trim, and standard mounting hardware. A cylinder is not included and must be ordered separately.
