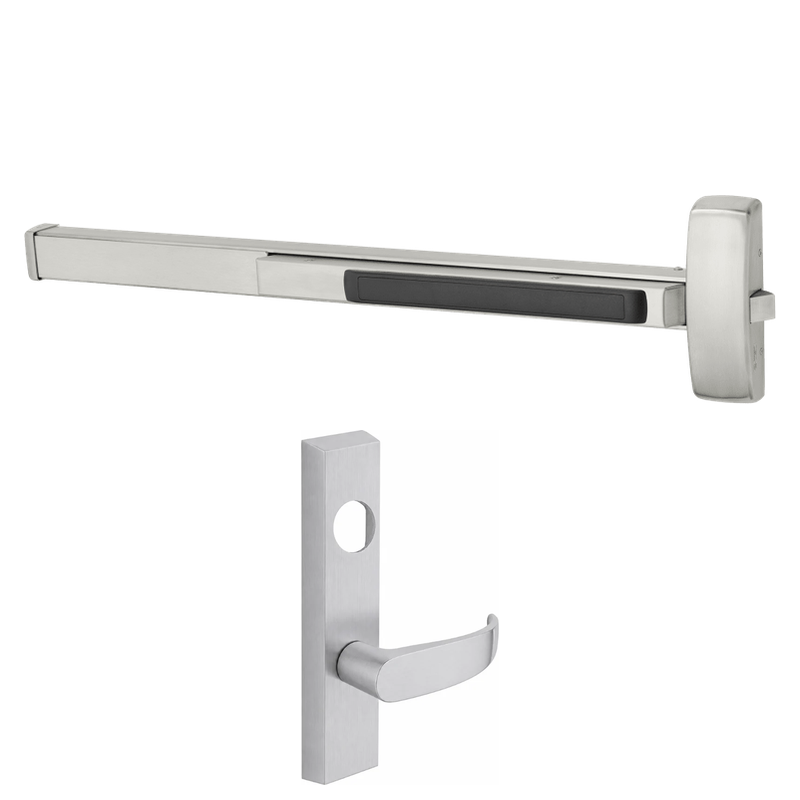

Sargent LC-12-56-8875-J-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-J-ETP-12V is an electrified fire rated rim exit device engineered for demanding commercial openings that require secure access control alongside reliable egress. Built for doors measuring 37 to 42 inches wide, this device combines electric latch retraction (ELR) with a fail safe configuration, allowing the latch to retract electrically for remote access or momentary free passage. The J design offers a durable, contemporary push pad, while the ETP lever trim provides keyed outside access. Supplied less cylinder and less dogging, it ships ready for field cylinder installation. Operating on 12V, it's a dependable choice for access-controlled exits in schools, healthcare, and institutional buildings.

Features

• Electrified fire rated rim exit device suitable for fire-rated door assemblies.
• Electric latch retraction allows the latch to be retracted remotely for momentary or sustained access.
• Fail safe operation unlocks the lever when power is removed, supporting controlled egress during power loss.
• Sized for doors from 37" to 42" in width.
• Key retracts latch for mechanical override from the outside.
• ETP (ET) lever trim with the J style push pad for clean, modern aesthetics.
• Supplied less cylinder, allowing you to match existing keying systems.
• Less dogging, as required for fire-rated applications.
• Operates on 12V DC.

Functional Details

This device uses electric latch retraction (ELR) to pull the latch bolt back electrically, enabling push/pull free access or remote release through an access control system. In the fail safe mode, removing power unlocks the outside lever trim, ensuring the door can be accessed during a power failure while egress is always available from the inside.

• Electric latch retraction retracts the latch bolt electrically for remote or momentary access.
• Fail safe: power off unlocks the outside lever/trim.
• Key retracts latch for mechanical override.

Arm Type Details

The 56 prefix designates the electric latch retraction package, while the 8800 series rim chassis mounts to the surface of the door for straightforward installation and service. The ETP trim mounts on the pull side and includes the keyed lever for secured outside operation.

Included Components

The device ships with the 8875 rim exit chassis, the 56 electric latch retraction module, J design push pad, and ETP lever trim. A compatible mortise cylinder must be ordered separately, as the unit is supplied less cylinder.
