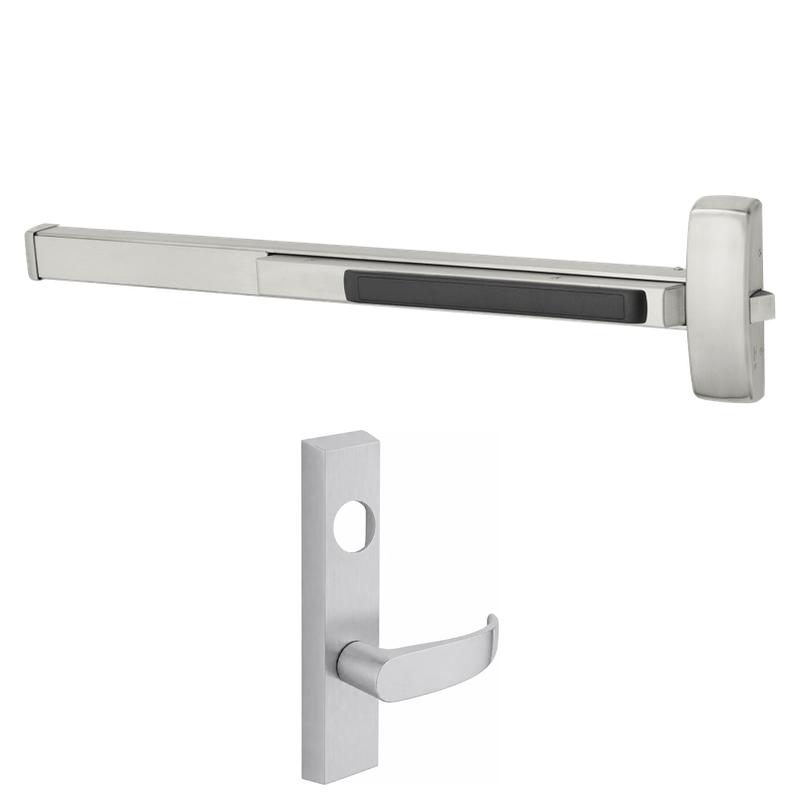

Sargent LC-12-56-8875-J-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-J-ETP-24V is a heavy-duty electrified rim exit device built for fire-rated openings that demand reliable access control. Designed for 37 to 42-inch door widths, this device features electric latch retraction (ELR) powered by a 24V motor, allowing the latch to retract electronically for remote access, push-pull operation, or integration with automatic operators. The fail-safe configuration unlocks the lever when power is removed, supporting controlled egress during emergencies. The J ETP trim provides a durable lever option, and the unit ships less cylinder and less dogging to suit fire-rated code requirements. It's a dependable choice for institutional, commercial, and high-traffic applications.

Features

• Electric latch retraction driven by a quiet, efficient 24V motor for remote and automated latch control.
• Fail-safe operation unlocks the outside lever when power is removed for secure egress during a power loss.
• Fire-rated construction suitable for labeled openings requiring exit hardware.
• Sized specifically for door widths between 37 and 42 inches.
• Rim-mounted design for straightforward installation on single or paired doors.
• Supplied less cylinder, allowing you to match existing keying systems.
• Less dogging, consistent with fire-rated application requirements.
• ETP escutcheon trim with the J lever design for durability and ADA-friendly operation.

Functional Details

This device uses electric latch retraction to pull the latch bolt in electronically, enabling momentary or sustained free access while maintaining a secure fire-rated barrier. When power is applied, the motor retracts the latch; when power is removed in the fail-safe configuration, the outside lever is unlocked to allow entry and egress.

• Key retracts latch for mechanical override.
• Fail safe, power off unlocks lever.
• Electric latch retraction operates on 24V.

Arm Type Details

The ETP trim pairs an escutcheon plate with the J lever, providing a robust pull-side control that operates the latch when the device is powered or mechanically overridden by key. The lever design meets accessibility standards for easy, low-effort operation.

Included Components

Includes the 8875 rim exit device chassis, ETP escutcheon trim with J lever, electric latch retraction motor assembly, and mounting hardware. Cylinder and dogging are not included.
