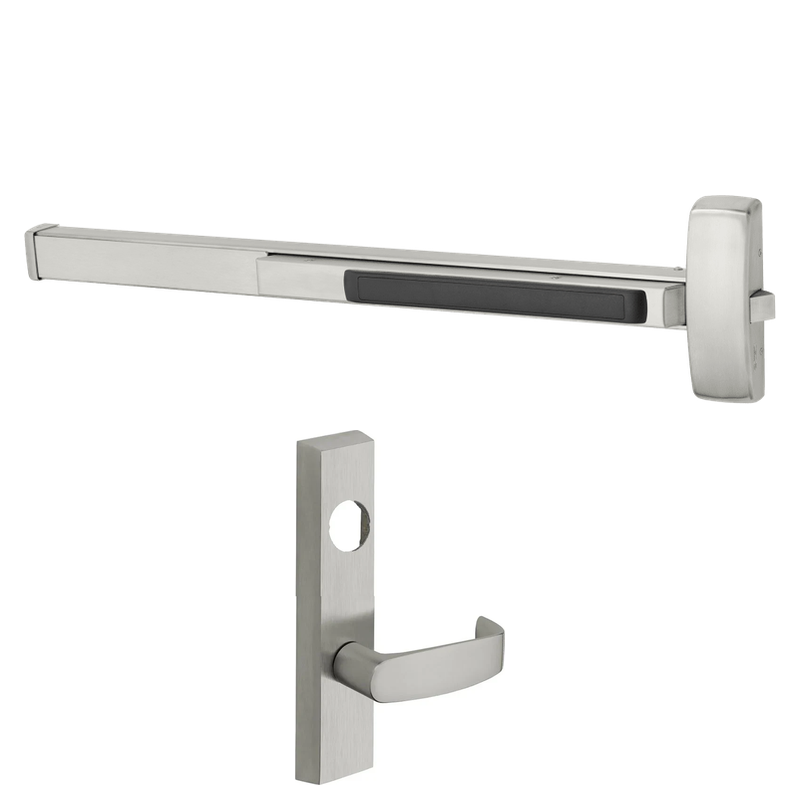

Sargent LC-12-56-8876-F-ETL-12V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-F-ETL-12V is a heavy-duty electrified rim exit device built for fire-rated openings that demand both life safety and secure access control. Featuring electric latch retraction (ETL), this device retracts the latch electrically for remote release and controlled entry, while its fail-secure configuration keeps the outside lever locked when power is lost. Designed for 33" to 36" door widths, it ships less cylinder for cylinder flexibility and less dogging to meet fire-rated code requirements. Operating on 12V, the 8876-F trim arrangement combines dependable panic hardware with modern integration into access control systems, making it ideal for commercial and institutional applications.

Features

• Electric latch retraction (ETL) for remote unlocking and seamless access control integration.
• Fail-secure operation keeps the outside lever locked when power is removed.
• Fire-rated construction suitable for labeled door assemblies.
• Sized for 33" to 36" wide doors.
• Supplied less cylinder to allow use of your preferred keying system.
• Less dogging to comply with fire-rated opening requirements.
• Operates on 12V power supply.

Functional Details

The 56-8876 ETL function uses an internal motor to electrically retract the latch, allowing free entry when energized while maintaining code-compliant free egress at all times. In the fail-secure mode, a loss of power leaves the exterior lever locked; a key retracts the latch for mechanical override.

• Fail Secure: Power off locks lever.
• Key retracts latch.
• Electric latch retraction.

Included Components

Device ships as a complete rim exit device with the 56-ETL electric latch retraction module and 8876-F exit trim. Cylinder and mounting hardware for cylinder are ordered separately.
