Sargent LC-12-56-8876-F-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-F-ETP-12V is a fire rated rim exit device engineered for high-traffic openings that require electrified access control. Built around the proven 80 Series platform, this fail secure unit uses electric latch retraction to hold the latch open for remote entry, momentary access, or integration with card readers and automatic operators. It fits doors measuring 33 to 36 inches wide and includes the ETP escutcheon trim with a lever for controlled exterior access. Supplied less cylinder and less dogging, it allows you to specify your preferred mortise cylinder while meeting the requirements of fire rated openings where mechanical dogging is not permitted.

Features

• Fire rated rim exit device suitable for labeled door assemblies.
• Electric latch retraction (EL) for remote and momentary access control.
• Fail secure operation keeps the lever locked when power is removed.
• ETP escutcheon trim with lever for secure exterior entry.
• Sized for 33 to 36 inch wide doors.
• Operates on 12V DC for compatibility with common access control systems.
• Supplied less cylinder for field-specified mortise cylinders.
• Less dogging, as required for fire rated applications.

Functional Details

The fail secure electric latch retraction function electrically withdraws the latch bolt to allow free entry from the exterior without using the key. On loss of power, the device returns to a secure state, keeping the outside lever locked while free egress is always maintained from the inside. The exterior ETP lever is controlled by the key or electrified retraction cycle.

• Fail Secure: Power off locks lever.
• Key retracts latch.
• Free egress at all times from the egress side.

Included Components

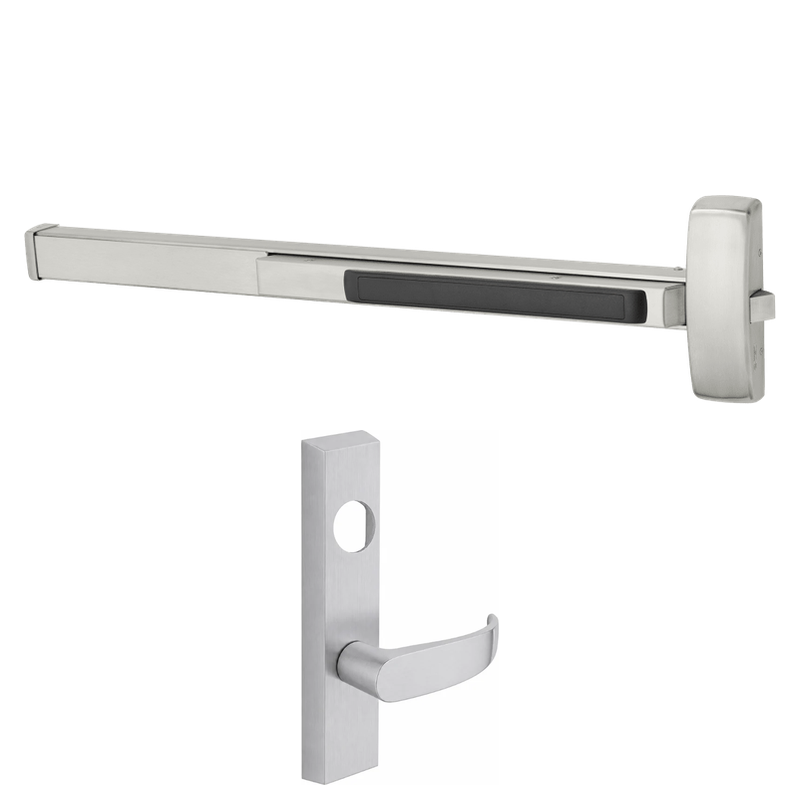

This device ships as a rim exit device chassis with the ETP escutcheon trim and lever, electric latch retraction mechanism, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
