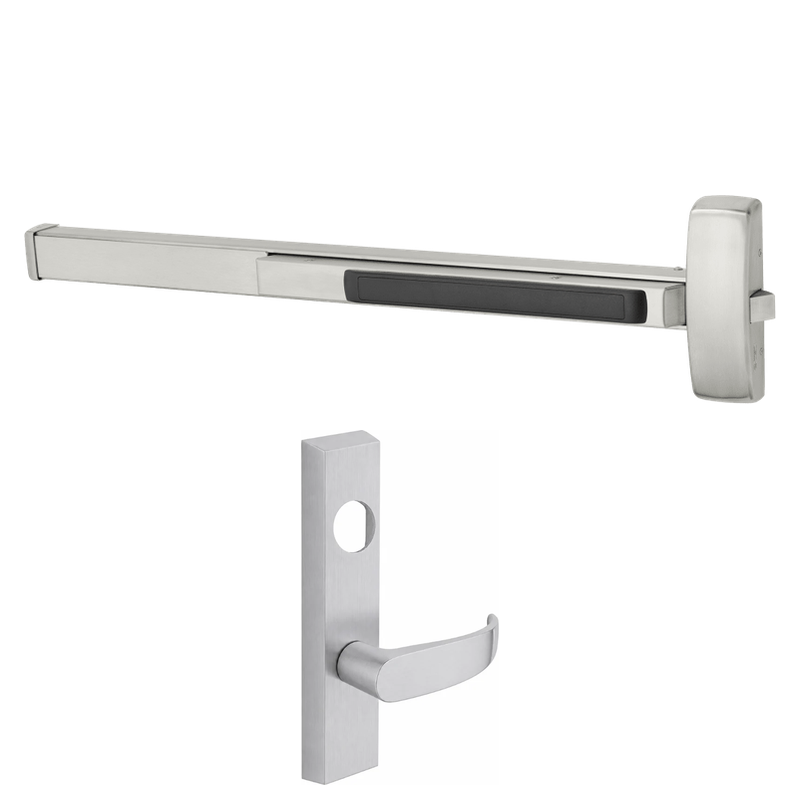

Sargent LC-12-56-8876-F-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-F-ETP-24V is a fire rated rim exit device built for high-traffic commercial openings that demand reliable access control. Part of Sargent's 80 Series, this unit combines electric latch retraction (ELR) with the ETP lever trim and operates on 24V power. Configured fail secure, the outside lever stays locked when power is removed, while authorized entry is managed through the trim and key. Designed for doors measuring 33 to 36 inches wide, it ships less cylinder and less dogging to suit fire door requirements. It's a durable, code-compliant choice for schools, healthcare facilities, and office buildings.

Features

• Fire rated rim exit device suitable for labeled fire door assemblies.
• Electric latch retraction allows remote unlocking and momentary latch pull-back.
• Fail secure operation keeps the outside lever locked when power is lost.
• ETP lever trim provides a comfortable, ADA-friendly grip for everyday use.
• Sized for door widths between 33 and 36 inches.
• Operates on 24V DC power for integration with access control systems.
• Supplied less cylinder, allowing you to match existing keying.
• Less dogging, as required for fire rated applications.

Functional Details

The 8876 function is an electric latch retraction fire exit device. When energized, the latch retracts electrically to allow push/pull free passage or remote release; de-energizing returns the device to a secure, latched state. Key retracts the latch from the outside, and the outside lever remains locked without authorized access.

• Electric latch retraction
• Fail secure: power off locks lever
• Key retracts latch
• Fire rated, less dogging

Arm Type Details

This device uses rim-mounted construction with ETP lever trim on the exterior. The ETP trim pulls the latch when authorized, offering a solid lever grip for accessible entry, while free egress is always available from the push side via the touchpad.
