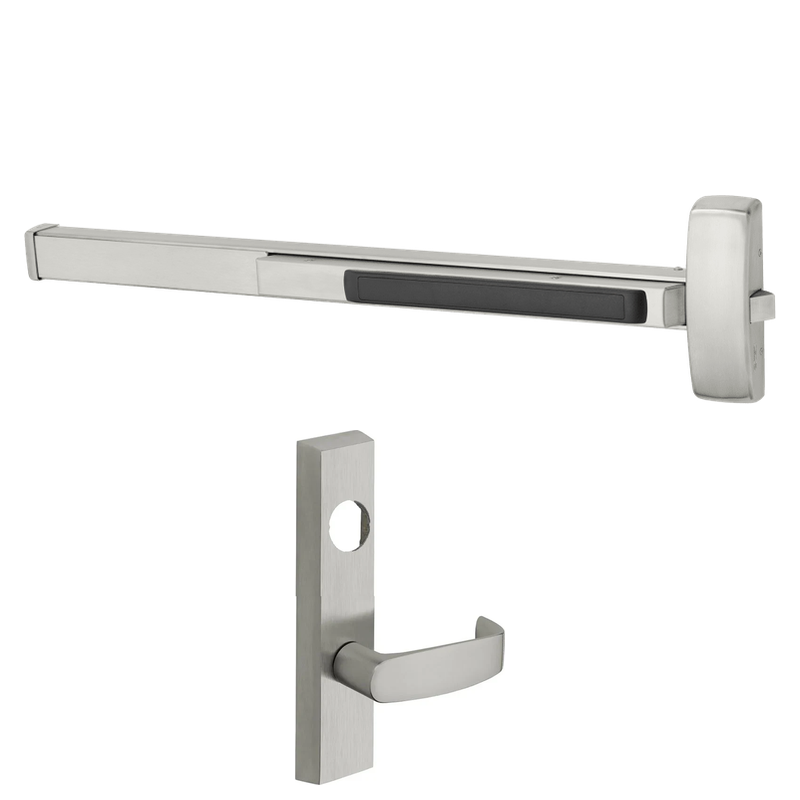

Sargent LC-12-56-8876-G-ETL-12V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-G-ETL-12V is a heavy-duty electrified rim exit device built for fire-rated openings that demand reliable access control. Designed for door widths of 43 to 48 inches, this Grade 1 device features electric latch retraction (ETL) powered at 12 volts, allowing the latch to be electrically retracted for remote unlocking and momentary free egress. Configured fail secure, the outside lever locks when power is removed, maintaining security during outages while a key retracts the latch. Supplied less cylinder and less dogging to suit fire-rated requirements, it pairs durability with the smooth operation expected from Sargent's 80 Series exit hardware.

Features

• Electric latch retraction (ETL) provides remote, momentary unlocking for controlled access.
• Fail secure operation keeps the outside lever locked when power is lost.
• Fire-rated rim exit device suitable for labeled door assemblies.
• Sized for door widths between 43 and 48 inches.
• Supplied less cylinder, allowing the installer to specify a matching mortise cylinder.
• Less dogging, as required for fire-rated applications.
• Key retracts the latch for secure mechanical entry from the exterior.
• Grade 1 construction for high-traffic commercial durability.

Functional Details

The 56-8876 ETL function combines a fire-rated rim exit device with 12V electric latch retraction. When energized, the latch retracts to permit push-pull or remote entry; when power is removed, the device returns to a fail secure state where the outside lever is locked and the latch must be retracted by key.

• Fail Secure: Power off locks the lever.
• Key retracts latch for entry.
• Electric latch retraction for remote operation.

Included Components

The device ships as a complete rim exit device assembly with the 'G' (grooved) trim lever design. A compatible mortise cylinder is required but not included, and no dogging mechanism is provided due to the fire-rated designation.
