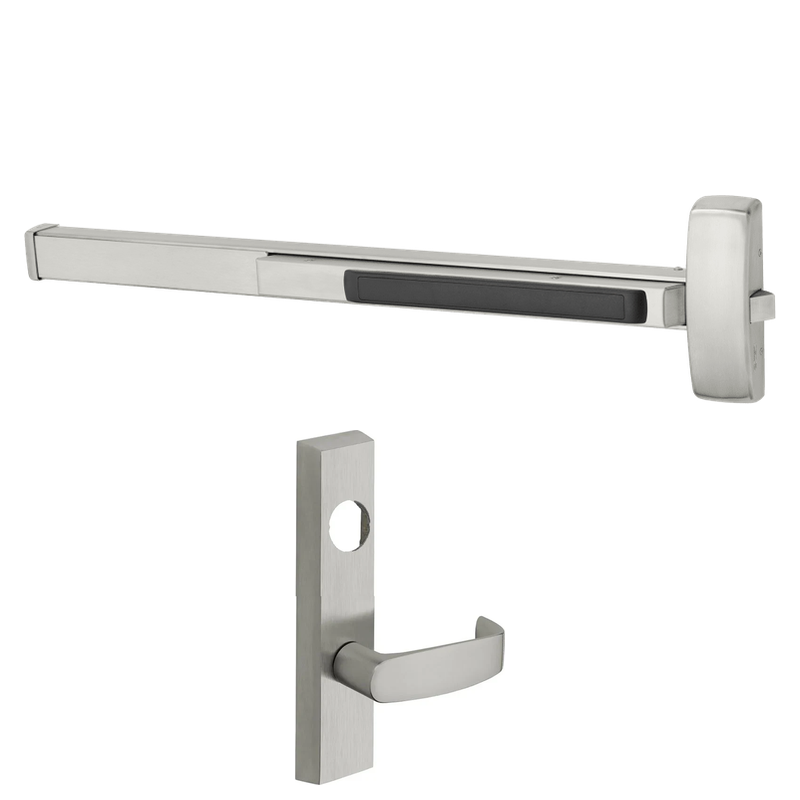

Sargent LC-12-56-8876-G-ETL-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-G-ETL-24V is a heavy-duty electrified rim exit device engineered for fire-rated openings that demand reliable access control. Built on Sargent's proven 80 Series platform, this fire-rated device features electric latch retraction (ETL) powered at 24V, allowing the latch to be retracted electrically for remote access or integration with building security systems. Configured as fail secure, the device keeps the outside lever locked when power is removed, with key access retracting the latch. Designed for doors measuring 43 to 48 inches wide, it ships less cylinder and less dogging, making it ideal for secure commercial and institutional entrances requiring dependable egress.

Features

• Electric latch retraction (ETL) allows remote unlatching at 24V for access control integration.
• Fire-rated construction suitable for labeled openings where dogging is not permitted.
• Fail secure operation keeps the outside trim locked during power loss for added security.
• Sized for wider door openings from 43 to 48 inches.
• Rim-mounted design for straightforward installation on single or paired doors.
• Ships less cylinder, allowing you to match existing keying systems.
• Less dogging, consistent with fire-rated application requirements.

Functional Details

This device uses electric latch retraction to pull the latch bolt in electrically, enabling momentary or sustained remote release without compromising the free egress provided by the push bar. In the fail secure configuration, removing power locks the outside lever, while key operation retracts the latch for authorized entry.

• Electric latch retraction for remote operation and access control.
• Fail secure: power off locks the outside lever.
• Key retracts latch for outside access.
• Fire rated application, less dogging.
