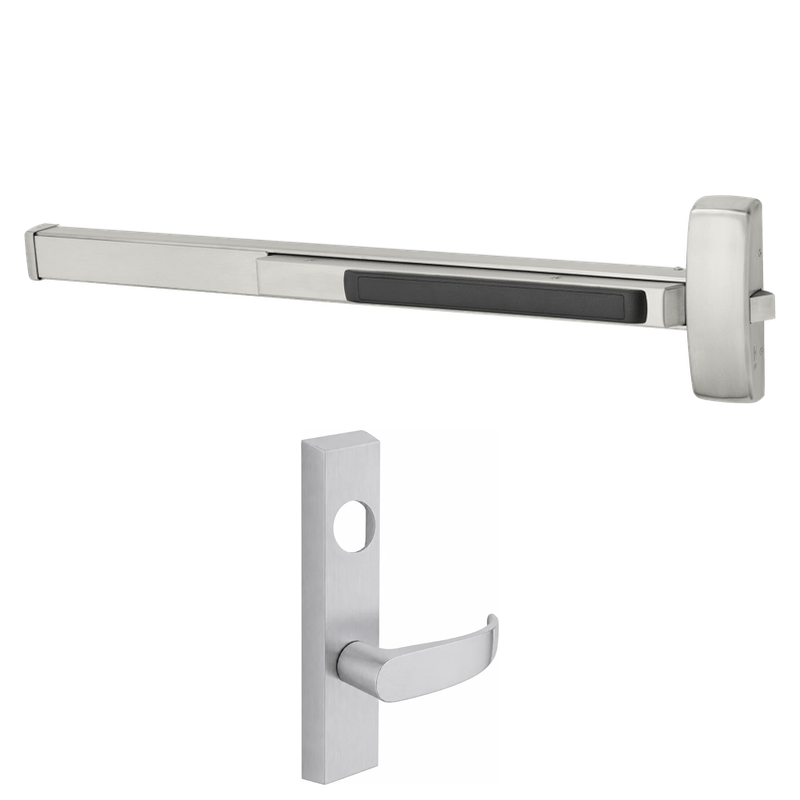

Sargent LC-12-56-8876-G-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-G-ETP-24V is a heavy-duty electrified fire rated rim exit device engineered for demanding commercial and institutional openings. Built to the trusted 8800 Series standard, it combines reliable panic exit performance with electric latch retraction (ELR) for integration with access control, remote release, and automatic operators. Operating on 24V DC in a fail secure configuration, the latch stays locked during a power loss while free egress is always maintained from the inside. Designed for doors measuring 43 to 48 inches wide, this unit ships less cylinder and less dogging, giving installers flexibility to match existing keying and site-specific security requirements.

Features

• Electrified fire rated rim exit device from Sargent's dependable 8800 Series.
• Electric latch retraction (ELR) allows remote unlatching for access control and automatic door operators.
• Fail secure operation keeps the latch locked when power is removed, maintaining security.
• Key retracts the latch for authorized mechanical access from the exterior.
• ETP electrified trim support with pull handle for controlled entry.
• Sized for door widths of 43" to 48" for wider openings.
• Supplied less cylinder and less dogging to accommodate custom keying and fire-rated applications.
• Fire rated construction suitable for labeled door assemblies.

Functional Details

In a fail secure electric latch retraction configuration, applying 24V DC power retracts the latchbolt to allow momentary or sustained entry, while removing power keeps the device latched and secure. Free egress is always available by depressing the push rail from the inside.

• Fail secure: power off locks outside lever/trim.
• Key retracts latch for outside access.
• Electric latch retraction for remote operation and access control integration.
• Free egress at all times from the inside.
