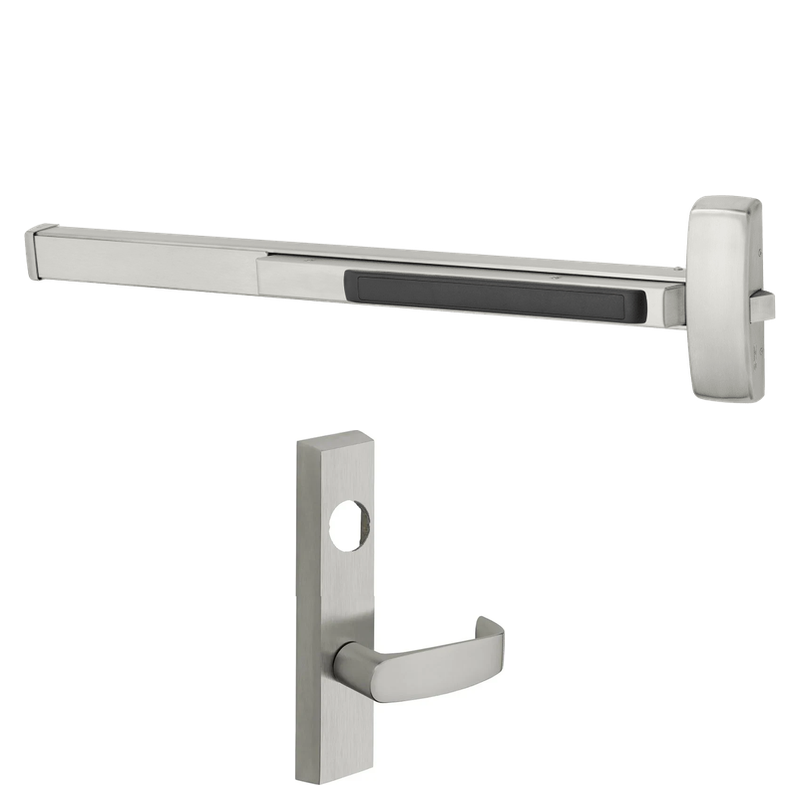

Sargent LC-12-56-8876-J-ETL-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-J-ETL-24V is a heavy-duty electrified rim exit device built for fire-rated openings that demand reliable electronic access control. Featuring electric latch retraction (ETL) powered at 24V, this device allows the latch to be remotely retracted for momentary or sustained access, making it ideal for high-traffic commercial entrances tied to card readers, timers, or building automation systems. Configured fail secure, the device keeps the opening locked when power is lost, maintaining security at all times. Designed for door widths of 37" to 42" and supplied less cylinder and less dogging, it offers the dependable performance Sargent is known for in demanding institutional and commercial applications.

Features

• Electrified fire-rated rim exit device suitable for fire-door assemblies.
• Electric latch retraction (ETL) allows remote, hands-free latch control.
• Operates at 24V for consistent, reliable solenoid performance.
• Fail secure operation keeps the door locked when power is removed.
• Sized for door widths from 37" to 42".
• Supplied less cylinder, allowing you to match your facility's keying system.
• J escutcheon (ET trim) styling for a clean architectural appearance.
• Less dogging, as required for fire-rated door applications.

Functional Details

As a fail secure electric latch retraction device, the 8876 retracts the latch electronically when energized, allowing free passage; when power is removed, the latch returns to the locked position to maintain security. The J option designates ET-style lever trim, and key operation retracts the latch from the outside.

• Fail Secure: Power off locks lever/trim, key retracts latch.
• Electric latch retraction for remote dogging and access control.

Arm Type Details

This is a rim-mounted exit device featuring a surface-mounted mechanism with a single rim latch engaging a strike on the door frame, providing straightforward installation and reliable latching on single doors or the active leaf of a pair.

Included Components

The unit ships as a complete electrified rim exit device with the 56 electric latch retraction option and J (ET) lever trim. Cylinder and dogging hardware are not included and must be ordered separately.
