Sargent LC-12-56-8876-J-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-J-ETP-12V is an electrified fire rated rim exit device built for high-traffic commercial openings that demand reliable access control. Designed for door widths between 37" and 42", this device features electric latch retraction (ELR) for remote operation and controlled access, making it ideal for use with card readers, keypads, and automatic operators. Configured as fail secure, the device keeps the outside lever locked when power is removed, with the key retracting the latch for entry. It ships less cylinder and less dogging, offering flexibility for your specific cylinder and keying requirements while maintaining full fire door compliance.

Features

• Electric latch retraction allows remote unlatching for integration with access control systems and automatic operators.
• Fire rated construction meets code requirements for fire door assemblies where mechanical dogging is not permitted.
• Fail secure operation keeps the outside lever locked when power is interrupted for enhanced security.
• Sized for door widths from 37" to 42" for wide opening applications.
• Supplied less cylinder, allowing you to specify the preferred cylinder and keying system.
• ETP trim with the J lever design provides a durable, comfortable grip for everyday use.
• Operates on 12V DC power for compatibility with common low-voltage systems.

Functional Details

The 56-8876 ETP function provides keyed entry through the outside lever while the electric latch retraction feature permits remote release of the latch. When power is removed, the device defaults to fail secure, keeping the exterior lever locked and requiring a key to retract the latch, while free egress is always maintained from the inside.

• Electric latch retraction retracts the latchbolt electrically for remote operation and momentary or sustained unlocking.
• Fail secure: outside lever is locked when power is off; key retracts the latch.
• Free egress at all times via the push bar regardless of power condition.

Arm Type Details

This is a rim-mounted exit device, meaning the latch mechanism mounts to the surface of the door and engages a strike on the frame. The 8800 series rim device offers straightforward installation and dependable performance on single doors and the active leaf of pairs.

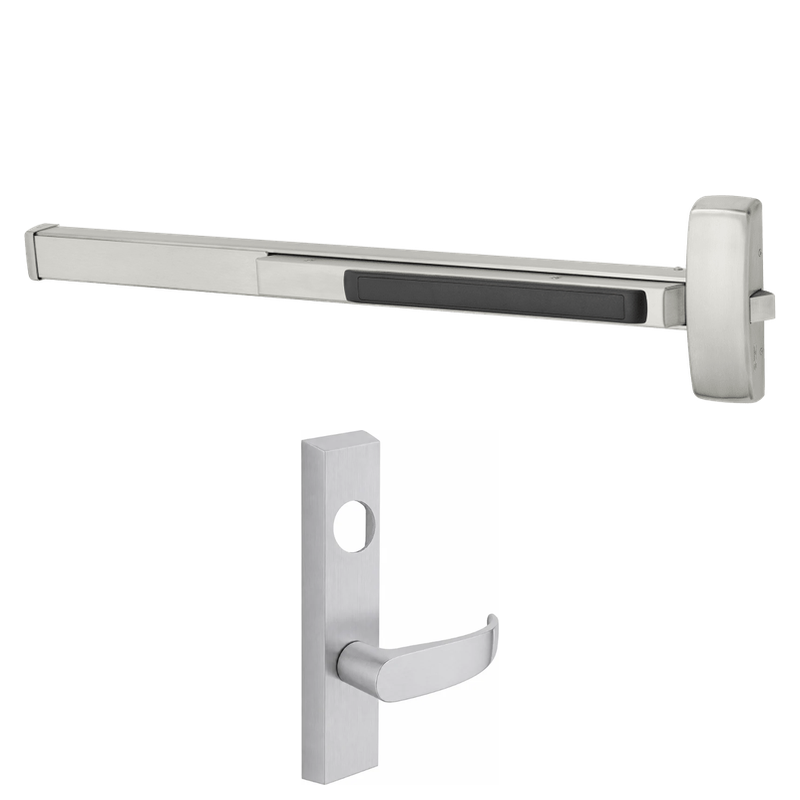

Included Components

The device ships as a complete electrified rim exit device with ETP escutcheon trim and the J lever design. It is supplied less cylinder and less dogging, so a mortise cylinder must be ordered separately to complete the keyed function.
