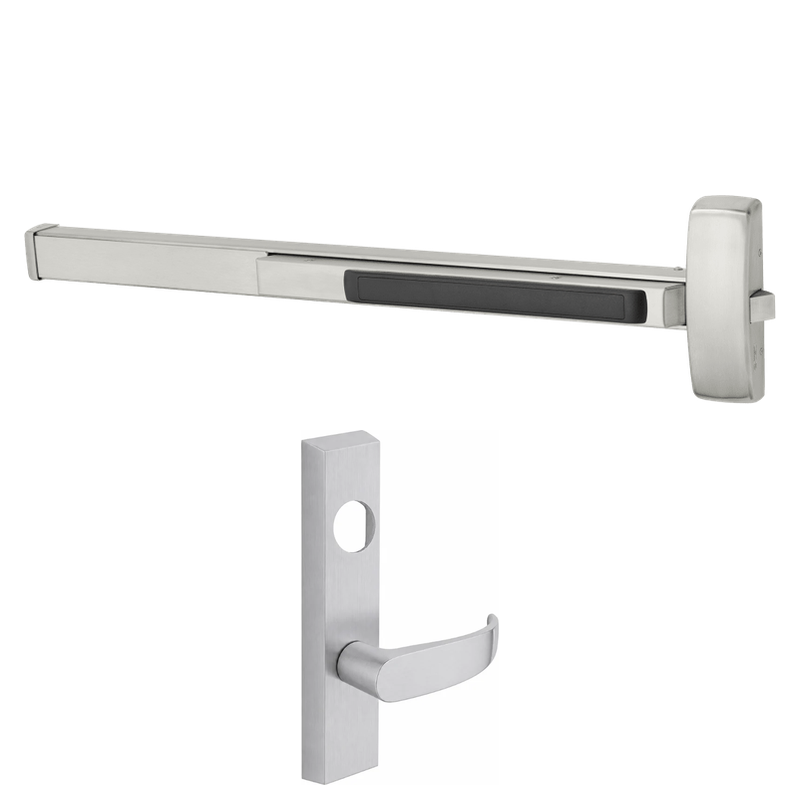

Sargent LC-12-56-8876-J-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8876-J-ETP-24V is a heavy-duty electrified rim exit device engineered for fire-rated openings that demand reliable access control. Built on Sargent's trusted 8800 Series platform, it combines electric latch retraction (ELR) with a fail-secure configuration, meaning the latch stays locked when power is removed. Designed for doors measuring 37 to 42 inches wide, this device ships less cylinder and less dogging, giving installers flexibility to specify the preferred mortise cylinder. The J-style lever with ETP trim and 24V operation make it well suited for busy commercial entrances, institutional corridors, and any application where remote unlatching and life-safety compliance are essential.

Features

• Electric latch retraction allows remote unlatching for controlled access and momentary free egress.
• Fail-secure design keeps the latch locked when power is lost, maintaining security and fire-rated integrity.
• UL fire-rated construction suitable for labeled door and frame assemblies.
• Sized for doors 37" to 42" wide to cover a broad range of openings.
• Ships less cylinder, letting you match an existing keyway or specify a new mortise cylinder.
• Less dogging, as required for fire-rated applications where mechanical hold-open is not permitted.
• ETP escutcheon trim with the J lever design for durable everyday use.
• 24V DC operation for integration with access control and power supplies.

Functional Details

This device operates as a fail-secure electric latch retraction unit. When energized at 24V, the solenoid retracts the latch to permit entry from the exterior trim or remote release. When power is removed, the latch remains projected and the outside lever is locked, while free egress from the inside is always maintained by depressing the push bar.

• Electric latch retraction (ELR) retracts the latch electrically for remote operation.
• Fail secure: power off locks the lever and latch.
• Key retracts latch via the outside cylinder.
• Free egress at all times from the push rail side.

Arm Type Details

As a rim-mounted exit device, the 8876 surface-mounts to the door face with a rim strike installed on the frame, providing straightforward installation and dependable latching for single door openings.

Included Components

The device includes the rim exit chassis, ETP trim with J lever, and electric latch retraction solenoid assembly. A mortise cylinder is not included and must be ordered separately.
