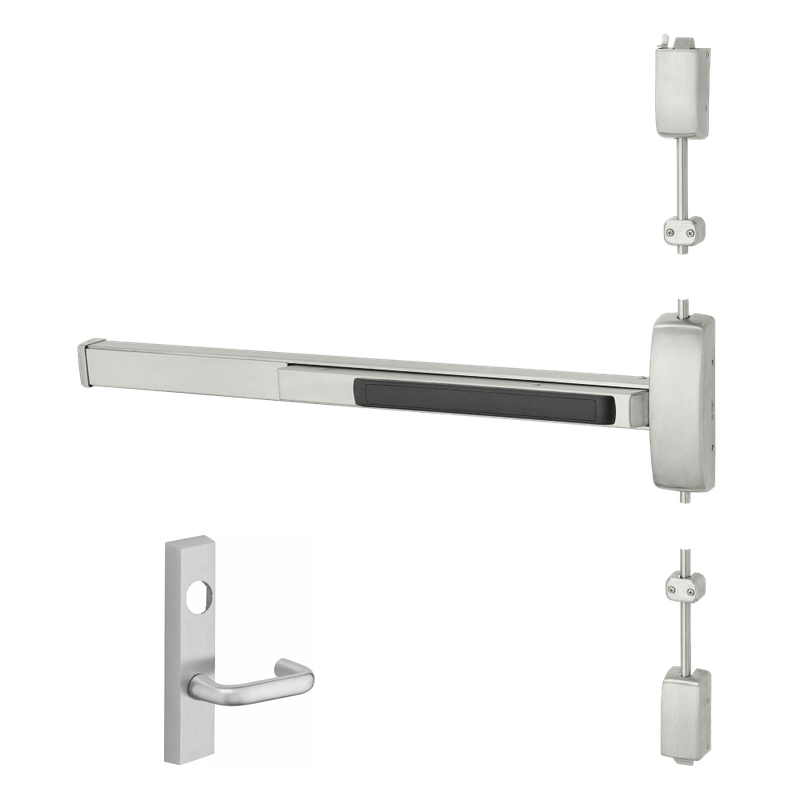

Sargent LC-12-8706-G-ETJ-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder

The Sargent LC-12-8706-G-ETJ-84 is a fire rated surface vertical rod exit device engineered for demanding commercial applications on doors measuring 43 to 48 inches wide and 84 inches tall. Configured for storeroom function with the ETJ lever trim, this device keeps the outside lever locked at all times while allowing free egress from the inside at any moment. The "LC" designation means it ships less cylinder, giving you the flexibility to pair it with your preferred mortise cylinder. Built to Sargent's rugged 8700 series standards, it delivers dependable fire-rated performance, smooth operation, and long-term durability in high-traffic openings.

Features

• Fire rated surface vertical rod design suitable for labeled fire door assemblies.
• Storeroom function keeps the outside lever locked while permitting free egress from inside.
• Sized for doors 43 to 48 inches wide and 84 inches tall.
• Supplied less cylinder (LC) for compatibility with your chosen mortise cylinder.
• ETJ (J) lever trim provides a comfortable, ADA-friendly grip.
• Heavy-duty construction built for high-traffic commercial environments.

Functional Details

The storeroom function (type 06) secures the opening so the outside lever remains locked continuously, requiring a key to retract the latch from the exterior. The inside push rail always allows instant, free egress, meeting life-safety and fire code requirements.

• Latchbolt by key outside at all times.
• Outside lever is always rigid (inactive).
• Free egress at all times from the inside.

Arm Type Details

This surface vertical rod device uses top and bottom latch rods mounted to the face of the door, engaging strikes at the head frame and threshold. This dual-point latching configuration provides secure fire-rated containment without the need for mortised vertical rods.

Included Components

The device includes the surface vertical rod exit chassis, top and bottom latch assemblies, and the ETJ (J) lever trim. A mortise cylinder is not included and must be ordered separately.
