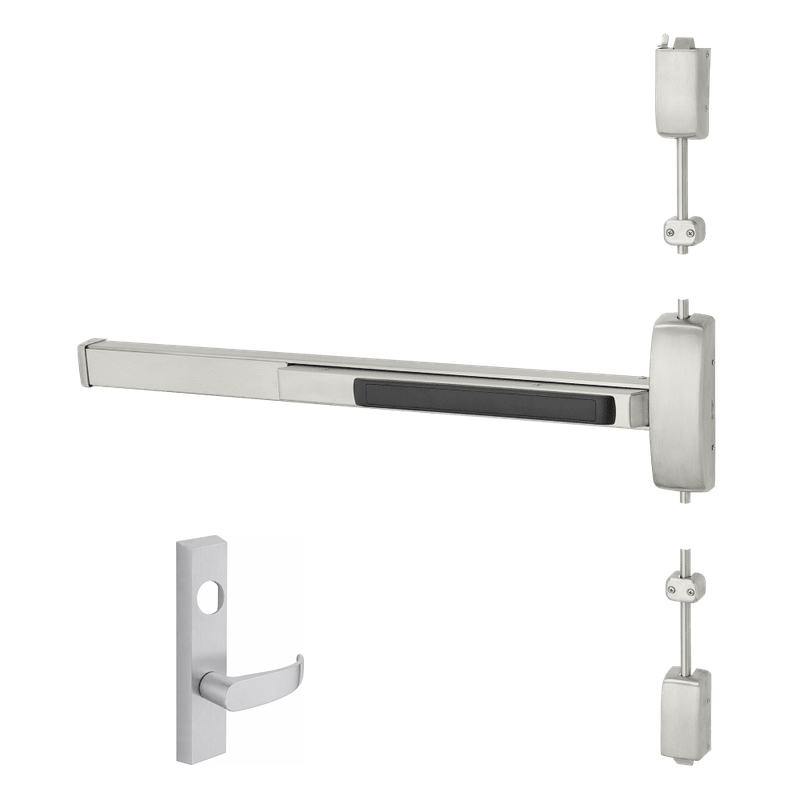

Sargent LC-12-8706-G-ETP-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder

The Sargent LC-12-8706-G-ETP-84 is a fire rated surface vertical rod exit device designed for high-traffic commercial openings that demand reliable egress and secure storeroom-style entry. Configured with the ETP (G) lever trim, it provides key-controlled access from the outside while allowing free, panic-compliant exit at all times. This model is sized for doors measuring 43–48 inches wide and 84 inches tall, and ships less cylinder, giving installers the flexibility to match an existing keying system. Built to Grade 1 standards, it delivers the durability and code compliance required for fire-rated exits in schools, hospitals, offices, and institutional buildings.

Features

• Fire rated surface vertical rod design suitable for labeled door assemblies.
• Storeroom function keeps the outside lever locked at all times while permitting free egress.
• ETP escutcheon trim with G lever offers a clean, durable gripping surface.
• Sized specifically for 43–48 inch wide and 84 inch tall doors.
• Supplied less cylinder for compatibility with your preferred keying system.
• Grade 1 construction built for heavy commercial and institutional use.

Functional Details

The storeroom function ensures controlled entry from the exterior while maintaining continuous free egress through the panic bar, making it ideal for secured rooms requiring key-only access.

• Outside trim is continuously locked.
• Latch retracted by key outside; key cannot hold the latch retracted.
• Inside lever or push rail retracts latch for free egress at all times.

Included Components

This device includes the surface vertical rod exit chassis, top and bottom latch assemblies, vertical rods, and the ETP escutcheon trim with G lever. A mortise cylinder must be ordered separately to complete the keyed function.
