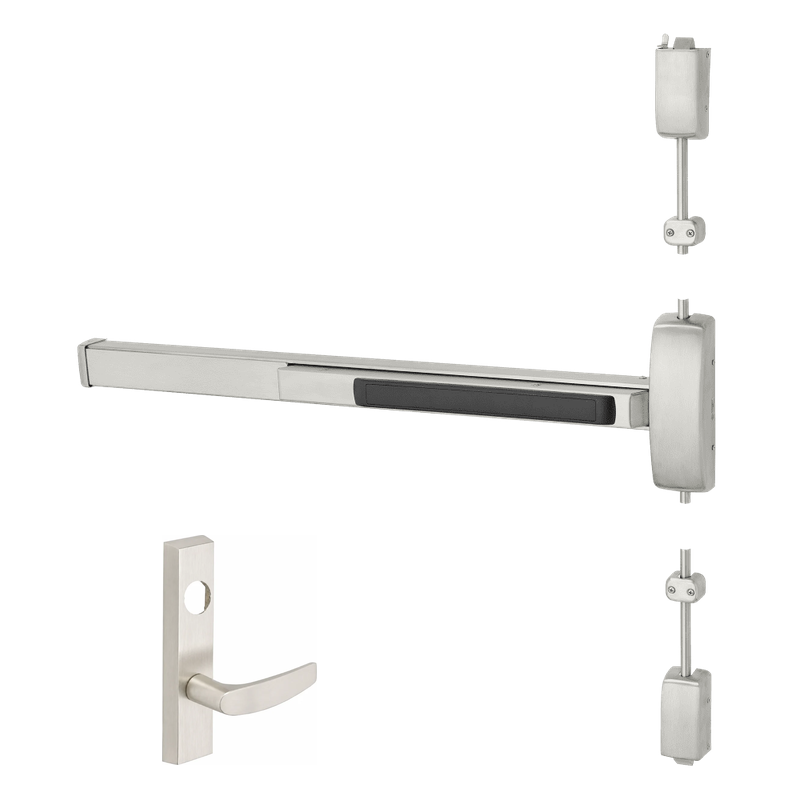

Sargent LC-12-8706-J-ETB-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 84" Ht Door, Less Cylinder

The Sargent LC-12-8706-J-ETB-84 is a fire rated surface vertical rod exit device built for demanding commercial openings. Configured for storeroom function with the ETB lever trim and J design, it secures doors measuring 37" to 42" wide and up to 84" in height. Shipped less cylinder, it lets you specify your own mortise cylinder to match an existing keying system. As part of Sargent's 8700 Series, this device delivers Grade 1 durability, reliable panic egress, and dependable fire door performance, making it a strong choice for schools, hospitals, offices, and other high-traffic facilities.

Features

• Fire rated surface vertical rod exit device suitable for labeled fire door assemblies.
• Storeroom function keeps the outside lever locked at all times while allowing free egress.
• ETB lever trim with the J design provides a comfortable, ADA-compliant operating lever.
• Sized for doors 37" to 42" wide and 84" in height.
• Supplied less cylinder so you can install your preferred mortise cylinder.
• Grade 1 construction engineered for long-term performance in heavy-use environments.

Functional Details

The storeroom function (12) keeps the exterior trim continuously locked. A key is required to retract the latch from the outside, while the interior push bar always permits free egress for life-safety compliance.

• Outside trim is always locked.
• Latch retracted by key from outside.
• Key cannot be removed unless latch is in projected (locked) position.
• Inside lever or push pad always active for immediate egress.

Arm Type Details

This is a surface-mounted vertical rod device. Latching occurs at the top and bottom of the door through vertical rods, providing two-point latching for added security and proper door alignment on fire rated openings.

Included Components

The device ships with the ETB lever trim in the J design, surface vertical rods, and top and bottom latch mechanisms. A mortise cylinder is not included and must be ordered separately.
