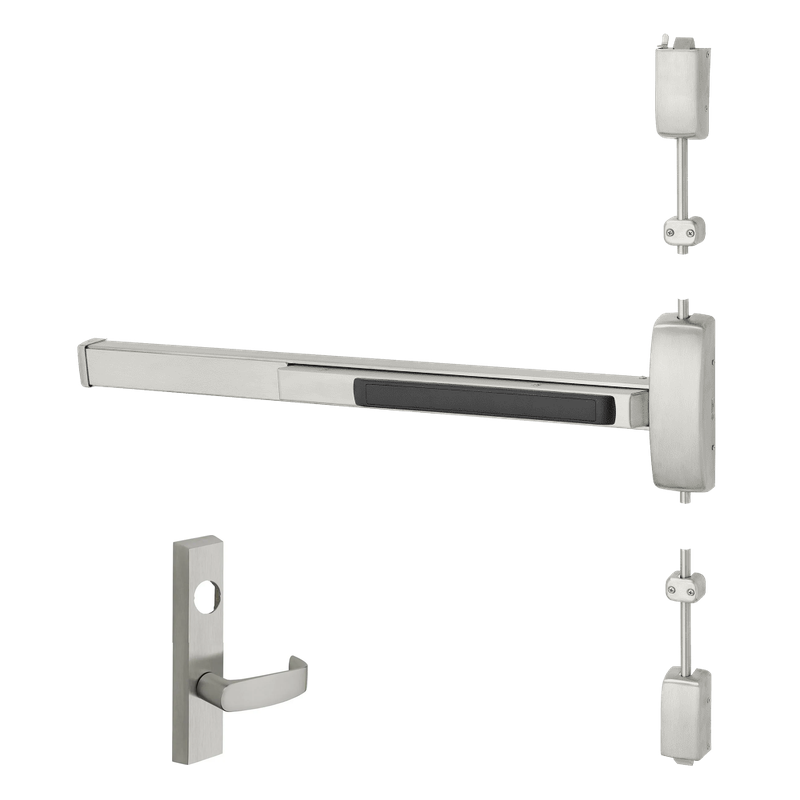

Sargent LC-12-8706-J-ETL-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 84" Ht Door, Less Cylinder

The Sargent LC-12-8706-J-ETL-84 is a fire rated surface vertical rod exit device engineered for demanding commercial applications where life safety and reliable egress are essential. Configured for storeroom function with the J design ETL trim, this device accommodates doors measuring 37 to 42 inches wide and up to 84 inches tall. The storeroom function keeps the outside trim locked at all times, requiring a key to retract the latch while always permitting free egress from inside. Supplied less cylinder, it allows you to match your existing keying system, and its surface-mounted vertical rods deliver dependable top and bottom latching on fire rated openings.

Features

• Fire rated construction suitable for labeled door and frame assemblies requiring positive latching.
• Surface vertical rod design provides secure top and bottom latching without mortising the door.
• Storeroom function keeps outside trim locked while allowing continuous free egress.
• Sized for doors 37 to 42 inches wide and 84 inches tall.
• Supplied less cylinder to integrate with your existing keying system.
• J design ETL lever trim offers a durable, comfortable grip for everyday use.
• Built to withstand high-traffic commercial and institutional environments.

Functional Details

The storeroom function (8706) means the lever trim is always rigid and locked from the outside. Entry requires a key to momentarily retract the latch, but the door relocks immediately once released. The inside push bar always allows free egress, satisfying code requirements for fire rated exits.

• Outside trim is always locked.
• Latchbolt retracted by key from outside.
• Key removable in locked position only.
• Free egress at all times from inside.

Arm Type Details

This model uses a surface-mounted vertical rod configuration. The top and bottom latch rods run along the face of the door, engaging strikes at the header and threshold to provide two-point latching that holds fire rated doors securely in their frames during an emergency.

Included Components

The device ships with the surface vertical rod exit chassis, J design ETL lever trim, top and bottom latch assemblies, and mounting hardware. A compatible mortise cylinder is required for installation and is sold separately.
