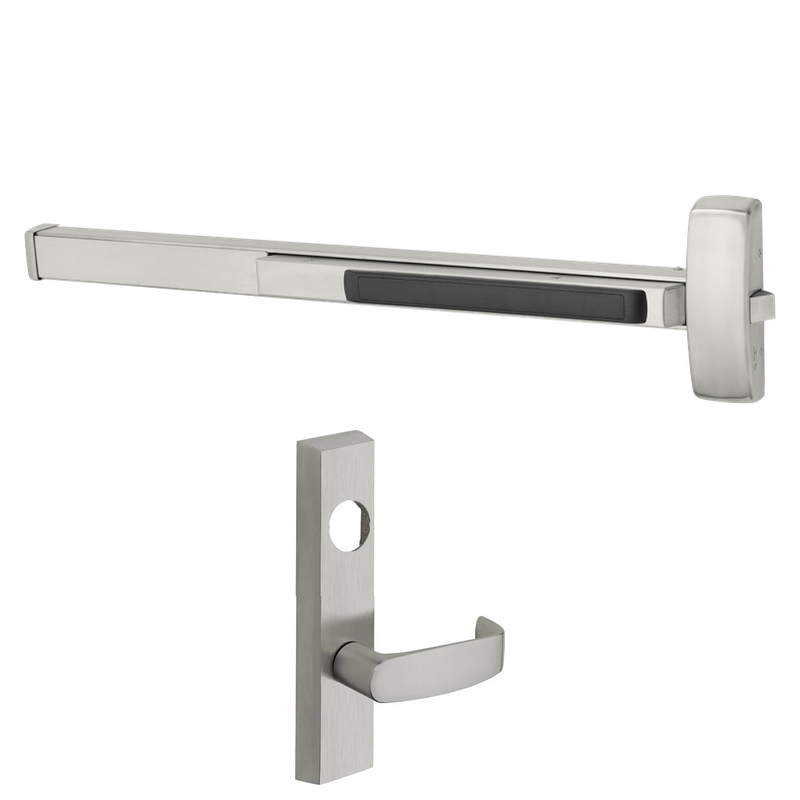

Sargent LC-12-8806-F-ETL Fire Rated Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 33-36" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8806-F-ETL is a fire rated rim exit device built for high-traffic commercial openings that demand reliable life-safety performance. Configured with the 8806 storeroom function and ETL trim, it keeps the outside lever locked at all times until a key is used to retract the latch and gain entry. This model fits doors measuring 33 to 36 inches wide and ships less cylinder and less dogging, making it ideal for fire-rated applications where the latch must stay engaged. A durable push rail and heavy-duty construction make it a dependable choice for schools, hospitals, and institutional buildings.

Features

• Fire rated rim exit device suitable for labeled door openings.
• 8806 storeroom function keeps the outside trim locked for controlled access.
• ETL escutcheon trim provides a durable key-operated lever on the outside.
• Sized for doors between 33 and 36 inches wide.
• Supplied less cylinder, allowing you to match your existing keyway.
• Less dogging as required for fire-rated installations.
• Heavy-duty push rail construction stands up to demanding commercial use.

Functional Details

In the 08 storeroom function, the outside lever is always rigid and the latchbolt is retracted only by a key or from the inside push rail. Turning and removing the key relocks the trim automatically, ensuring the door stays secured after each use.

• Key unlocks (retracts latchbolt) outside trim.
• Key removed relocks (projects latchbolt) outside trim.
• Latchbolt retracted by lever inside at all times.
• Outside lever is always rigid.

Included Components

The device ships with the rim exit mechanism, ETL escutcheon trim with lever, and standard mounting hardware. A cylinder is not included and must be ordered separately to match your keying system.
