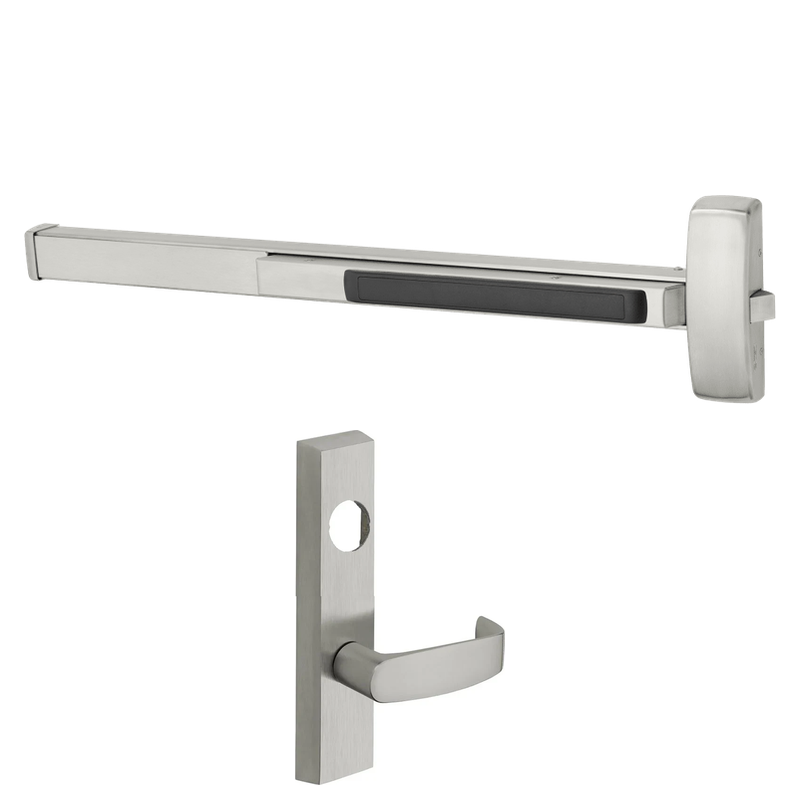

Sargent LC-12-8806-G-ETL Fire Rated Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8806-G-ETL is a fire rated rim exit device engineered for high-traffic commercial openings that demand reliable egress and controlled access. Configured for the storeroom function, it uses the G (Gull) lever trim to allow key-controlled entry, while the latch relocks automatically once the key is removed, keeping the door secured at all times. Built to span door widths from 43 to 48 inches, this device ships less cylinder so you can specify the exact keying system you need. As a fire rated unit, it comes less dogging to maintain positive latching and compliance on labeled fire door assemblies.

Features

• Fire rated rim exit device suitable for labeled fire door openings.
• Storeroom function allows key access while keeping the outside trim locked.
• Trim relocks automatically when the key is removed for consistent security.
• Sized for 43" to 48" door widths.
• G (Gull) design lever trim provides a comfortable, ADA-friendly grip.
• Supplied less cylinder for flexible keying integration.
• Less dogging to preserve positive latching on fire-rated applications.

Functional Details

The storeroom function keeps the outside trim locked at all times. Inserting and turning the key retracts the latch to allow entry, and once the key is withdrawn the trim relocks, so the opening never remains unintentionally unlocked. The inside push rail always allows free egress.

• Outside trim is always locked.
• Key unlocks the latch for momentary entry.
• Trim relocks when the key is removed.
• Free egress at all times from the push rail side.

Arm Type Details

The G trim designation refers to Sargent's Gull-style lever, a contoured lever pull that pairs with the exit device for keyed access on the pull side of the opening. Its ergonomic shape supports accessible operation on commercial doors.
