Sargent LC-12-8806-J-ETL Fire Rated Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8806-J-ETL is a fire rated rim exit device built for storeroom applications where controlled access and consistent security are priorities. Designed for 37" to 42" door widths, this device pairs reliable panic egress with the storeroom function, where a key unlocks the outside trim for entry and the trim automatically relocks once the key is removed. Supplied less cylinder and less dogging, it integrates the ETL J-style lever trim for a clean, modern profile. As a fire rated assembly, mechanical dogging is omitted to maintain code compliance, making this an ideal choice for corridor, stairwell, and secured entry openings in commercial buildings.

Features

• Fire rated rim exit device suitable for labeled door openings requiring panic hardware.
• Storeroom function (06) provides secured access with key-controlled entry.
• Key unlocks the outside trim, and the trim relocks automatically once the key is removed.
• Sized for doors measuring 37" to 42" in width.
• Supplied less cylinder, allowing field selection of the preferred mortise cylinder.
• Less dogging, as required for fire rated applications.
• Includes the ETL J-style lever trim for comfortable, ADA-friendly operation.

Functional Details

The 06 storeroom function keeps the outside lever locked at all times. Authorized entry is granted by a key, which momentarily unlocks the trim; when the key is withdrawn, the trim returns to its locked state. Free egress is always available from the inside by pushing the touchbar.

• Outside trim is always locked.
• Key unlocks and relocks the outside trim.
• Latchbolt operated by lever from outside when unlocked.
• Free egress at all times by pressing the push rail.

Arm Type Details

This device uses the ETL trim with the J-style lever design. The lever offers a contemporary look and smooth, intuitive operation that meets accessibility requirements for commercial openings.

Included Components

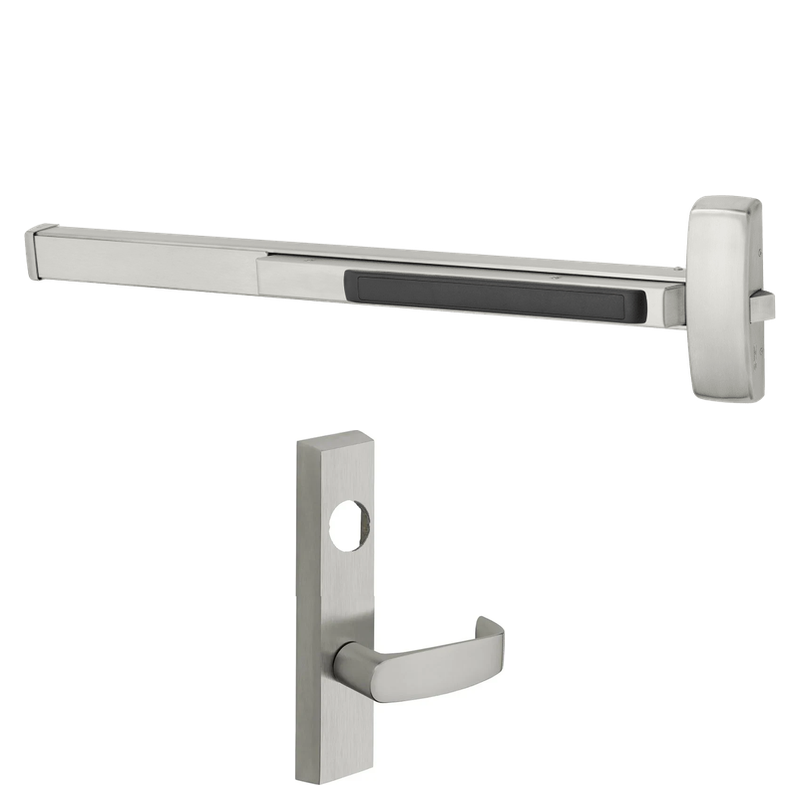

The device ships with the 8800 series rim exit chassis and ETL J lever trim. A mortise cylinder is required and ordered separately.
