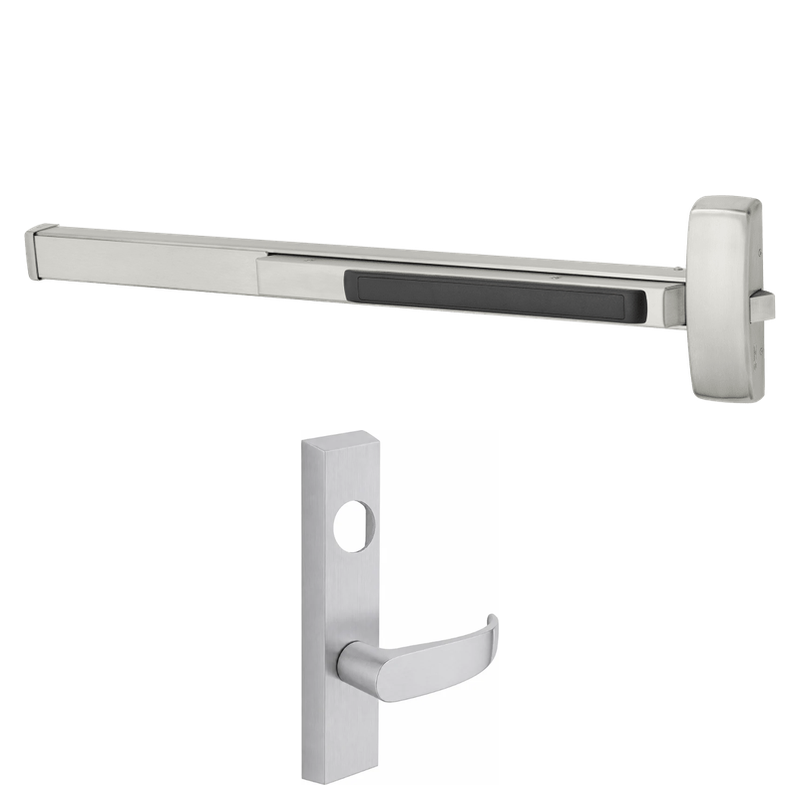

Sargent LC-12-8806-J-ETP Fire Rated Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 37-42" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8806-J-ETP is a fire rated rim exit device built for demanding commercial openings that need secure, dependable egress. Configured for storeroom function, it allows free exit at all times while keeping the outside trim locked until a key is used. The J-ETP (ET pull) trim pairs with the 8806 rim mechanism and is sized for doors measuring 37 to 42 inches wide. This model ships less cylinder and less dogging, making it ideal for fire-rated applications where mechanical dogging is not permitted. A rugged choice for schools, hospitals, offices, and other high-traffic facilities requiring code-compliant hardware.

Features

• Fire rated rim exit device suitable for labeled fire door assemblies.
• Storeroom function: the key unlocks the outside trim momentarily and the trim relocks automatically once the key is removed.
• Sized to fit door widths from 37 to 42 inches.
• Supplied less cylinder, allowing you to specify your preferred mortise cylinder.
• Less dogging as required for fire-rated installations.
• Durable ET pull (J-ETP) trim designed for heavy daily use.
• Grade 1 performance for long-term reliability in commercial settings.

Functional Details

In storeroom function, the outside trim remains locked at all times. Inserting and turning the key retracts the latch to allow momentary entry, and the trim automatically relocks the moment the key is withdrawn. The push bar on the inside always permits free egress regardless of the outside locking state.

• Outside trim is always locked.
• Latchbolt operated by key from outside.
• Key removable only when latchbolt is projected (door closed).
• Free egress at all times from the inside.

Arm Type Details

The J-ETP designation indicates the ET-style pull trim with the "J" lever/escutcheon configuration. This trim provides a rugged pull for authorized entry while keeping the mechanism locked under storeroom function, offering a clean appearance that complements most commercial door designs.

Included Components

This package includes the 8806 fire rated rim exit device chassis, J-ETP exterior pull trim, and standard mounting hardware. A mortise cylinder is required but not included and must be ordered separately.
