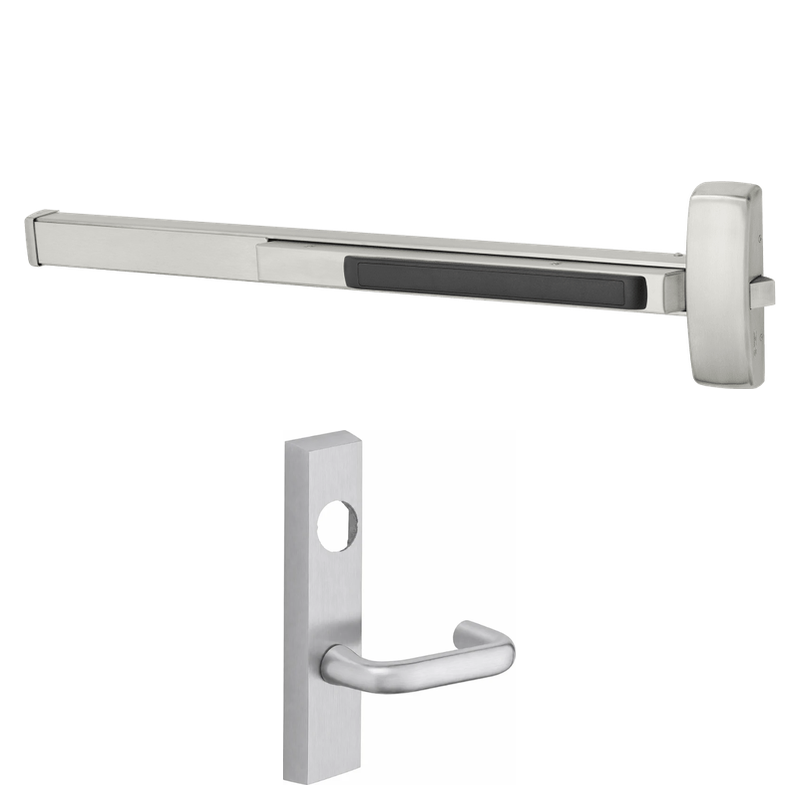

Sargent LC-12-8875-F-ETJ-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8875-F-ETJ-12V is an electrified fire-rated rim exit device engineered for secure, code-compliant openings on commercial and institutional doors. Built for doors measuring 33 to 36 inches wide, it combines Sargent's rugged 8800 Series construction with 12V fail-safe electrification, meaning the lever unlocks automatically when power is removed for safe egress during an emergency. This configuration ships less cylinder for flexible keying and features the ETJ lever trim, where a key retracts the latch for controlled access. As a fire-rated device, it comes less dogging to maintain positive latching required for fire-rated assemblies. It's a dependable choice for high-traffic access-controlled entrances.

Features

• Electrified rim exit device rated for fire door assemblies requiring positive latching.
• Fail-safe operation unlocks the outside lever when power is removed, allowing immediate egress.
• 12V DC operating voltage for compatibility with standard access control systems.
• ETJ lever trim allows key-controlled latch retraction from the outside.
• Sized for doors 33 to 36 inches in width.
• Supplied less cylinder, letting you key the device to an existing system.
• Less dogging to preserve fire-rated latching integrity.
• Durable 8800 Series design built for demanding commercial use.

Functional Details

The 8875 function provides fail-safe electrified operation. When energized, the outside lever is locked; removing power releases the lever to permit entry, while free egress is always available from the inside by depressing the push bar. The key function retracts the latch for manual access.

• Fail Safe: Power off unlocks the outside lever.
• Key retracts latch.
• Always allows free egress from the inside.

Arm Type Details

This device uses the ETJ escutcheon lever trim. The lever remains rigid and non-operational when electrically locked, and once the device is energized or de-energized according to the fail-safe mode, the lever allows controlled entry. A key cylinder can retract the latch for mechanical override.

Included Components

The package includes the rim exit device chassis, ETJ lever trim, and mounting hardware. A mortise cylinder is not included and must be ordered separately to match your keying requirements.
