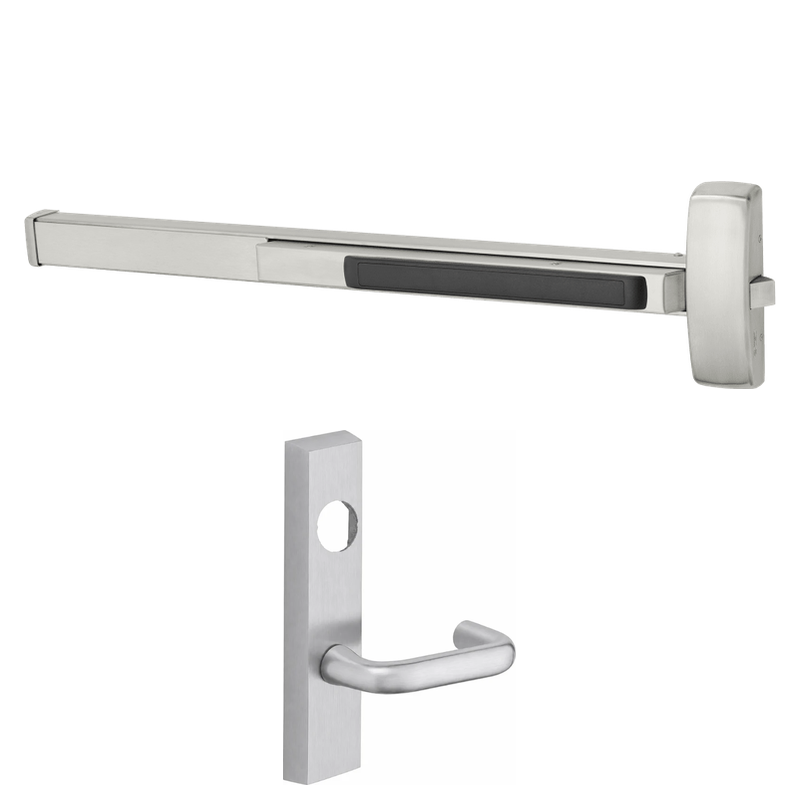

Sargent LC-12-8875-F-ETJ-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8875-F-ETJ-24V is a fire-rated electrified rim exit device built for demanding commercial openings that require both life-safety compliance and controlled access. Designed for doors measuring 33 to 36 inches wide, this device operates on 24V DC and features a fail-safe electrified function, meaning the outside lever unlocks on power loss to support safe egress and emergency access. The ETJ lever trim allows key retraction of the latch, while the unit ships less cylinder and less dogging to suit fire-rated applications. As part of Sargent's heavy-duty 80 Series, it delivers the reliability and durability expected in high-traffic environments.

Features

• Fire-rated rim exit device suitable for labeled door and frame assemblies.
• Electrified fail-safe operation unlocks the outside lever when power is removed.
• 24V DC operation for integration with access control systems.
• ETJ (J) escutcheon lever trim with key-retracts-latch capability.
• Sized for doors from 33 to 36 inches in width.
• Supplied less cylinder, allowing use of your preferred keying system.
• Less dogging, as required for fire-rated installations.
• Grade 1 construction for long service life in heavy-use openings.

Functional Details

The fail-safe electrified function keeps the outside lever locked while energized and automatically unlocks it when power is interrupted, ensuring entry during a power failure or emergency. Free egress through the push bar is always available regardless of power state.

• Fail safe: power off unlocks the outside lever for access.
• Key retracts latch for mechanical override from the outside trim.
• Continuous free egress from the inside at all times.

Arm Type Details

This device uses the ETJ outside trim, which features a J-style escutcheon lever. The lever provides controlled outside access and, when the function is powered or keyed, retracts the latch to allow entry while maintaining the fire rating of the opening.

Included Components

The package includes the 8875-F fire-rated rim exit device chassis and the ETJ lever escutcheon trim. A mortise cylinder is not included and must be ordered separately to complete the key-retracts-latch function.
