Sargent LC-12-8875-G-ETJ-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8875-G-ETJ-12V is an electrified fire rated rim exit device built for high-traffic commercial openings that demand reliable access control and dependable egress. Designed for doors measuring 43 to 48 inches in width, this unit features a fail safe electrified trim that unlocks the lever when power is removed, making it an ideal choice for secured entries that must release during a power loss. The ETJ lever design provides a comfortable, ADA-compliant grip, while the keyed outside trim allows authorized users to retract the latch. Supplied less cylinder and less dogging, it meets fire door requirements for continuous latching.

Features

• Electrified fire rated rim exit device engineered for 43 to 48 inch wide doors.
• Fail safe operation unlocks the outside lever when power is removed.
• ETJ lever trim offers a durable, ergonomic grip for everyday use.
• Key retracts the latch for convenient authorized entry from the outside.
• Furnished less cylinder, allowing you to pair your preferred mortise cylinder.
• Less dogging construction supports fire rated door applications requiring positive latching.
• 12V DC operation for compatibility with standard access control systems.

Functional Details

This device uses a fail safe electrified trim: when power is applied the outside lever remains locked, and when power is interrupted the lever unlocks to allow free entry. The latch continuously latches to maintain fire door integrity, and a key can retract the latch from the exterior for controlled access.

• Fail Safe: Power off unlocks the outside lever for entry.
• Outside key retracts the latch.
• Fire rated application with no mechanical dogging.

Arm Type Details

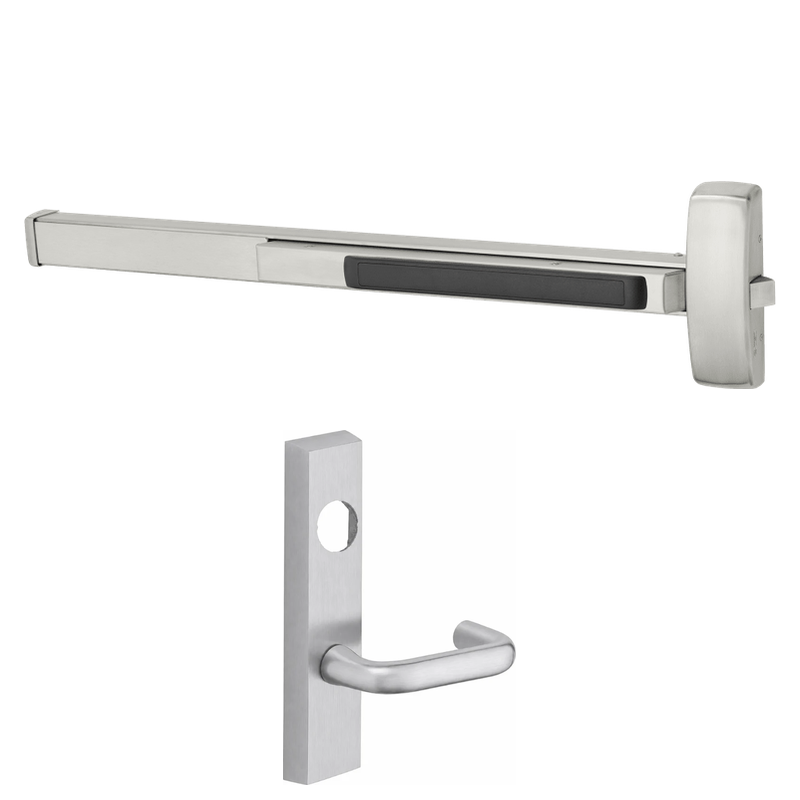

The G-ETJ configuration pairs the 8800 series rim exit device with the ETJ escutcheon lever trim. The lever controls entry through the electrified module while the push bar on the interior always allows free egress.

Included Components

This order includes the rim exit device chassis, the G-ETJ electrified lever trim, and standard mounting hardware. A cylinder must be ordered separately to complete the keyed function.
