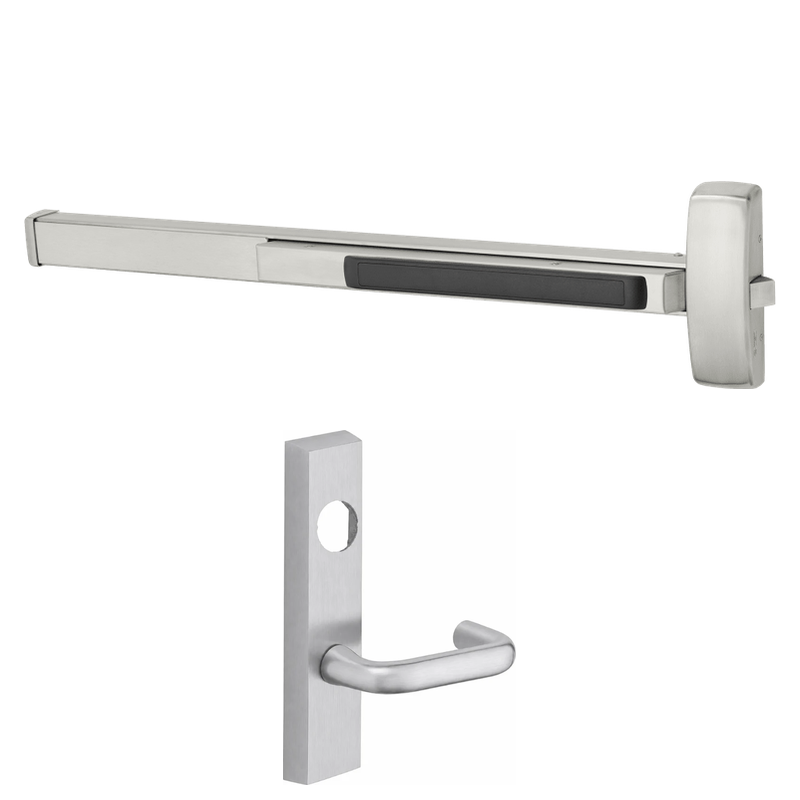

Sargent LC-12-8875-G-ETJ-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8875-G-ETJ-24V is an electrified fire rated rim exit device engineered for reliable security and life safety on wide openings measuring 43 to 48 inches. Operating on 24V, this unit features a fail safe design, meaning the lever unlocks when power is removed to allow free egress during an emergency. The ETJ trim provides key retraction of the latch for controlled entry, while the less cylinder and less dogging configuration lets you specify the mortise cylinder you need and meets fire-rated requirements. Built to Grade 1 standards, it delivers dependable performance for commercial and institutional applications.

Features

• Electrified fail safe operation unlocks the lever when power is removed for safe egress.
• Fire rated construction suitable for labeled door and frame assemblies.
• Rim-type exit device for single or double door applications.
• Sized for doors 43 to 48 inches in width.
• ETJ lever trim allows key retraction of the latch for secure entry.
• Less cylinder configuration lets you match your facility's keying system.
• Less dogging as required for fire-rated installations.
• Operates on 24V DC for integration with access control systems.

Functional Details

In a fail safe configuration, the device remains locked while powered. When power is interrupted, either intentionally or during a power failure, the outside lever is released so the door can be opened from the exterior, supporting controlled access and emergency requirements.

• Fail Safe: Power off unlocks the outside lever for entry.
• Key retracts latch for mechanical override.
• Panic egress always available from the inside.

Arm Type Details

The ETJ designation refers to the lever trim style used with this device. The lever allows keyed entry from the outside and provides a comfortable, ADA-friendly grip for operation when the device is powered down.

Included Components

The device ships with the rim exit chassis, ETJ electrified lever trim, and mounting hardware. The mortise cylinder is ordered separately to accommodate your keying requirements.
