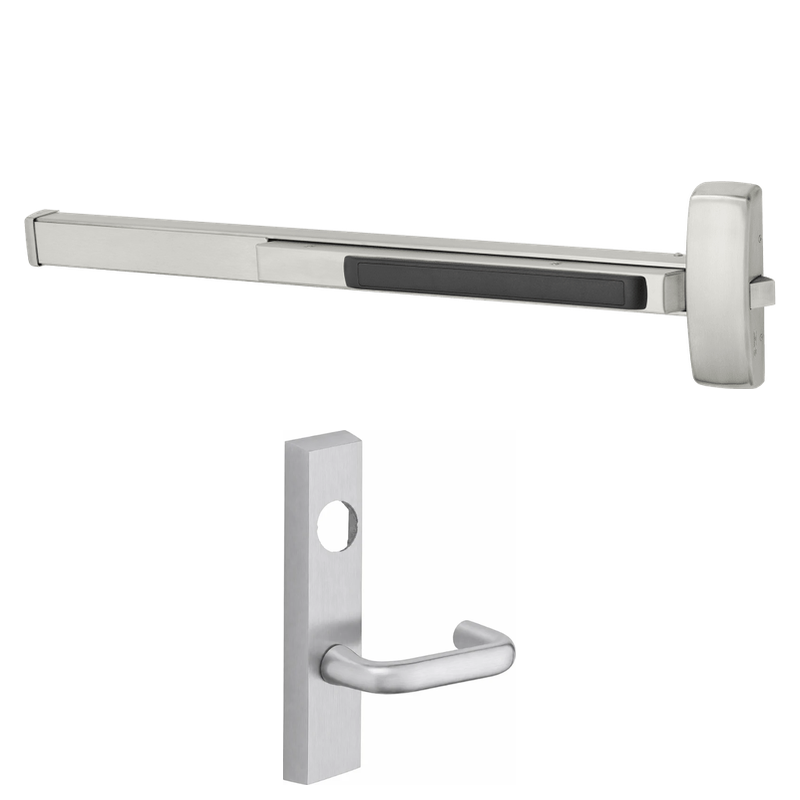

Sargent LC-12-8875-J-ETJ-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8875-J-ETJ-12V is an electrified fire rated rim exit device built for demanding commercial and institutional openings. Designed for doors measuring 37 to 42 inches wide, it pairs dependable panic hardware with 12V fail safe electrified operation, so the outside J lever unlocks automatically when power is removed—ideal for secure areas that require safe egress during a power loss. The ETJ electrified trim allows key-controlled latch retraction from the exterior, while free egress is always available from the inside. Supplied less cylinder and less dogging, this fire rated device meets the requirements for labeled door assemblies where mechanical dogging is not permitted.

Features

• Fire rated rim exit device suitable for labeled door openings.
• Fail safe electrified function unlocks the outside lever when power is cut, ensuring safe access during emergencies.
• 12V DC operating voltage for compatibility with standard low-voltage access control systems.
• ETJ electrified exit trim with J lever design for durable, comfortable operation.
• Sized for doors from 37 to 42 inches in width.
• Supplied less cylinder, allowing use of your preferred keying system.
• Less dogging as required for fire rated applications.
• Key retracts the latch from the exterior for authorized entry.

Functional Details

The 8875 fail safe electrified function controls the outside lever trim. When power is applied, the exterior lever is locked and entry requires a key; when power is interrupted, the lever becomes unlocked to permit free access. The inside lever or push pad always allows free egress, meeting life-safety code requirements.

• Fail Safe: lever is locked when energized and unlocked when de-energized.
• Key outside retracts latchbolt for entry.
• Free egress at all times from the inside.

Arm Type Details

The ETJ designation indicates electrified exit trim fitted with the J lever style. The J lever provides a contoured, ergonomic grip and a traditional aesthetic suited to institutional and commercial interiors, operating in conjunction with the electrified fail safe control.

Included Components

Device ships as a complete rim exit device with ETJ electrified J lever trim. Cylinder is not included and must be ordered separately for the key-controlled functions.
