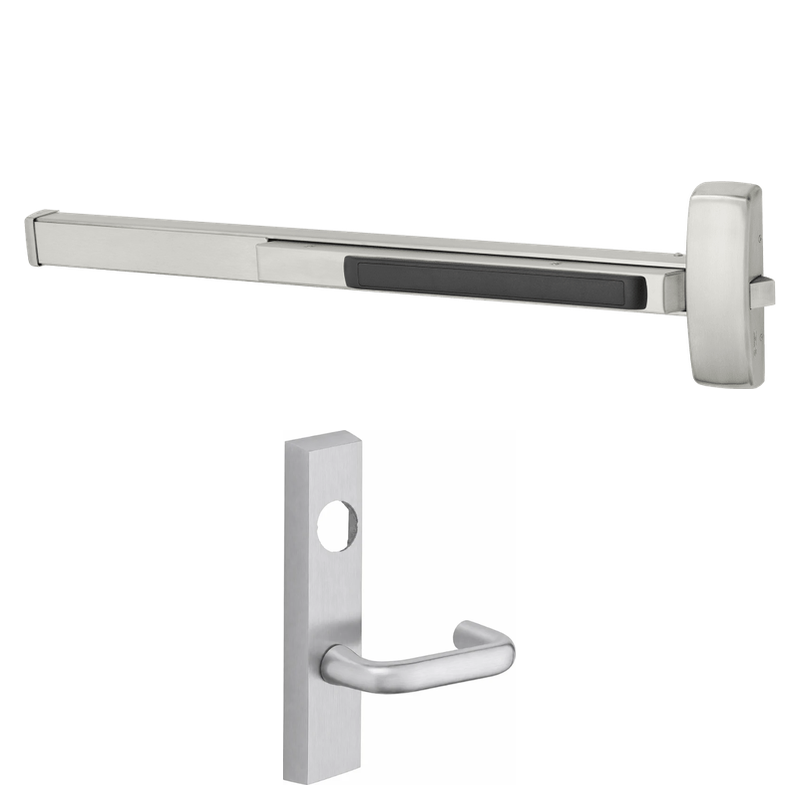

Sargent LC-12-8875-J-ETJ-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-8875-J-ETJ-24V is a fire rated electrified rim exit device built for demanding commercial openings up to 42 inches wide. Engineered as a fail safe unit, it unlocks the outside lever when power is removed, making it a reliable choice for access-controlled doors that must allow egress during a power loss. The ETJ trim and J lever pairing delivers a clean, durable grip, while the key-retracts-latch feature lets authorized users pull the latch for free entry. Supplied less cylinder and less dogging, this 24V device fits seamlessly into Sargent's 80 Series and integrates with modern electrified hardware systems for secure, code-compliant installations.

Features

• Fire rated rim exit device suitable for labeled door assemblies.
• Fail safe operation unlocks the outside lever when power is removed.
• Designed for doors measuring 37 to 42 inches in width.
• Operates on 24V DC for compatibility with standard access control power supplies.
• Key-retracts-latch function allows authorized key access from the outside.
• Supplied less cylinder, allowing you to specify your preferred keying system.
• Furnished less dogging, as required for fire rated applications.
• ETJ electrified trim paired with the J lever design for strength and comfort.

Functional Details

This device uses an electrified outside trim to control access. In the fail safe configuration, removing power releases the lever so the door can be opened from the outside, ensuring egress and entry are maintained during a power interruption. Applying power locks the lever for secure access control.

• Fail Safe: Outside lever is unlocked when power is removed.
• Key retracts latch for mechanical override.
• Fire rated, less dogging construction.

Arm Type Details

The ETJ designation indicates electrified trim with the J lever style. The J lever provides a contoured, ergonomic grip and is rated for heavy commercial traffic, while the electrified trim module controls lock and unlock states based on power input.

Included Components

The device ships as a complete rim exit assembly with the ETJ electrified trim and J lever. It is provided less cylinder and less dogging, so a compatible mortise cylinder should be ordered separately.
