Sargent LC-12-NB-8706-F-ETB-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36 Inch Width, 96 Inch Height Door, Less Cylinder, No Dogging, Less Bottom Rod, Thermal Pin

The Sargent LC-12-NB-8706-F-ETB-96 is a fire rated surface vertical rod exit device engineered for demanding commercial openings up to 96 inches in height and door widths of 33 to 36 inches. Built for storeroom function, it keeps the exterior trim locked at all times while always allowing free egress from the inside. This configuration ships less cylinder for keying flexibility, features a less bottom rod design for cleaner installation and reduced floor-level maintenance, and includes the ETB escutcheon trim with lever. With no dogging and a thermal pin for fire door compliance, it delivers dependable, code-driven performance for high-traffic institutional and commercial applications.

Features

• Fire rated surface vertical rod exit device suited for life-safety openings.
• Storeroom function keeps outside trim locked while permitting free egress.
• Less bottom rod design simplifies installation and lowers floor-level maintenance.
• Sized for doors 33 to 36 inches wide and up to 96 inches tall.
• Ships less cylinder to accommodate the facility's existing keying system.
• Includes thermal pin for fire door assembly compliance.
• No dogging feature, as required for fire rated applications.
• ETB escutcheon lever trim provides durable keyed exterior access.

Functional Details

The storeroom function (12) means the outside lever is always locked and operated only by key, while the inside push rail always releases the latch for immediate egress. Pairing this with the less bottom rod arrangement maintains top-latch security without a lower rod and latch.

• Outside trim is locked at all times.
• Key retracts the latch for momentary access.
• Free egress at all times from the inside.

Arm Type Details

As a surface vertical rod device, the exit hardware uses a rail-mounted mechanism driving an upper vertical rod to the top latch. With the less bottom rod configuration, only the top latching point is engaged, reducing moving components near the floor while maintaining secure latching at the head of the door.

Included Components

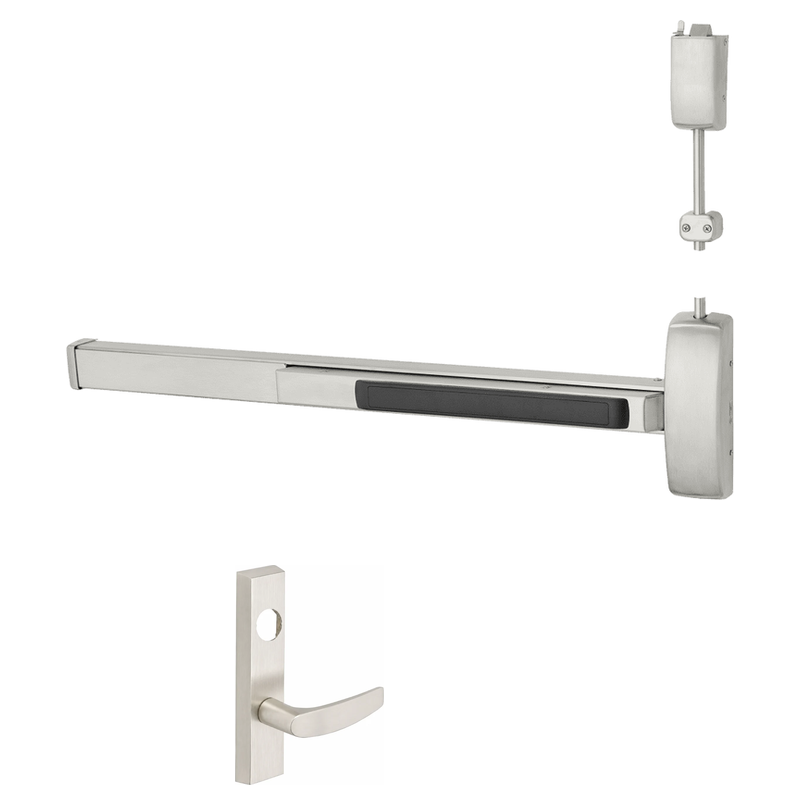

Device ships with the exit rail chassis, upper vertical rod and top latch, ETB escutcheon lever trim, and a thermal pin for fire door compliance. The unit is supplied less cylinder and less bottom rod.
