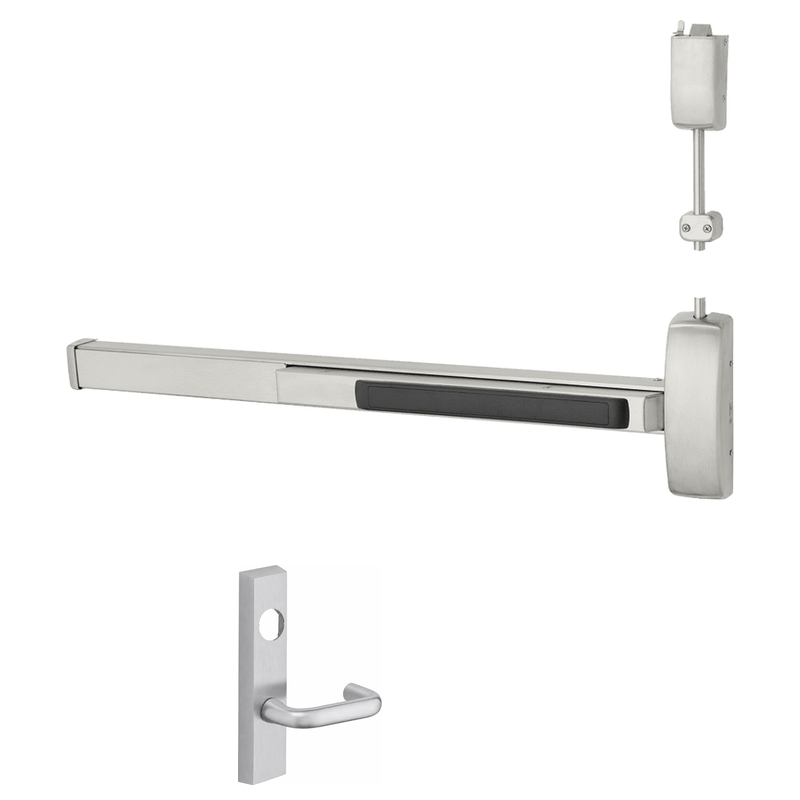

Sargent LC-12-NB-8706-F-ETJ-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36 Inch Width, 84 Inch Height Door, Less Cylinder, No Dogging, Less Bottom Rod, Thermal Pin

The Sargent LC-12-NB-8706-F-ETJ-84 is a fire-rated surface vertical rod exit device engineered for dependable egress on 33-36 inch wide doors measuring 84 inches in height. Built to Grade 1 standards, it features the ETJ lever trim in a storeroom function, so the door stays locked from the outside and requires a key for entry while allowing free exit at all times. This configuration ships less cylinder and less bottom rod, reducing debris buildup and simplifying maintenance at the floor line. With no dogging and a thermal pin for fire-rated performance, it's a reliable choice for commercial openings where code compliance and durability matter most.

Features

• Fire-rated surface vertical rod exit device suitable for labeled door assemblies.
• Storeroom function keeps the outside trim locked at all times, with a key required for entry.
• Less bottom rod design eliminates the lower rod and latch for cleaner floor clearance and easier maintenance.
• Less cylinder (LC) configuration lets you supply the mortise cylinder of your choice.
• No dogging feature supports fire-rated applications where the latch must remain active.
• Thermal pin construction provides added protection under fire conditions.
• ETJ lever trim offers comfortable, code-compliant operation.
• Sized for 33-36 inch wide doors up to 84 inches in height.

Functional Details

The storeroom (12) function provides secure control of the opening by keeping the outside lever locked continuously. A key retracts the latch for momentary entry, and the latch automatically relocks once the door closes. Free egress is always available from the inside by pushing the touchbar.

• Outside trim is always locked.
• Key retracts latch bolt.
• Latch bolt automatically relocks when door closes.

Arm Type Details

This device uses the ETJ escutcheon lever trim, which pairs a lever handle with a mortise cylinder prep for keyed access. The lever is used only to key the device for entry; pushing the touchbar from the interior always permits free egress.

Included Components

The device ships as a surface vertical rod exit device with ETJ lever trim and top rod assembly. The bottom rod and lower latch are omitted per the less bottom rod configuration, and a mortise cylinder is not included due to the less cylinder specification.
