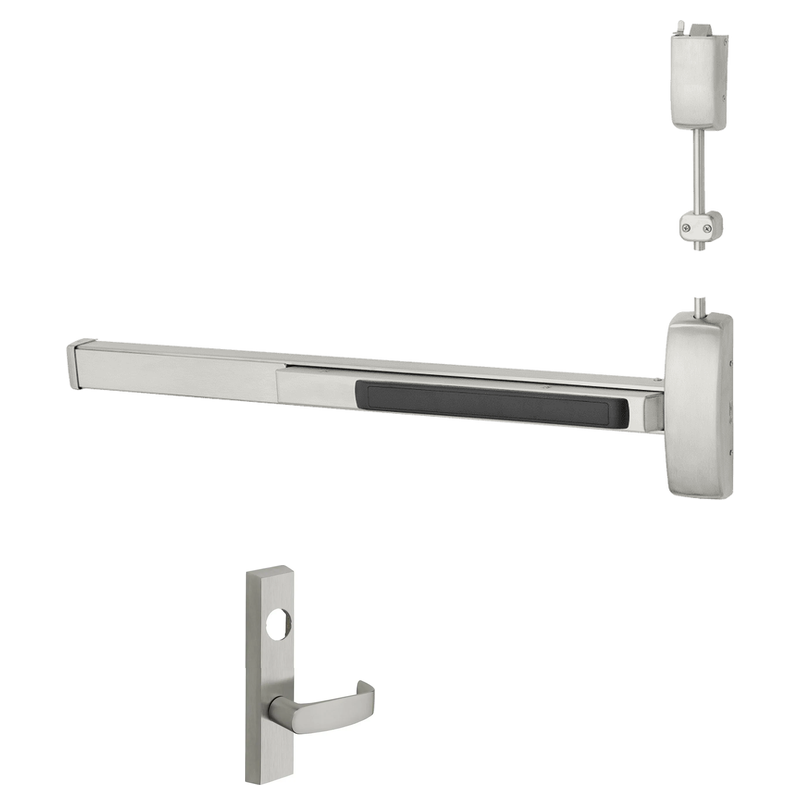

Sargent LC-12-NB-8706-F-ETL-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36 Inch Width, 84 Inch Height Door, Less Cylinder, No Dogging, Less Bottom Rod, Thermal Pin

The Sargent LC-12-NB-8706-F-ETL-84 is a fire-rated surface vertical rod exit device engineered for dependable egress on 33 to 36 inch wide doors measuring 84 inches in height. Configured in a storeroom function with the ETL trim, it operates less cylinder for installations where the cylinder is supplied separately, and it ships less bottom rod to simplify maintenance and reduce floor obstructions. The non-dogging design keeps the device latched at all times, an essential requirement for fire-rated openings. Built to Grade 1 standards and backed by a thermal pin for fire performance, this exit device delivers the durability and code compliance demanded in high-traffic commercial and institutional settings.

Features

• Fire-rated surface vertical rod exit device suited for life-safety openings.
• Storeroom function provides secure, controlled access from the outside.
• Sized for doors 33 to 36 inches wide and 84 inches in height.
• Supplied less cylinder, allowing use of your preferred keying system.
• Less bottom rod construction eliminates floor-level components for cleaner operation.
• Non-dogging design keeps latches engaged for fire-door compliance.
• Includes a thermal pin to support fire-rated performance.

Functional Details

In the storeroom (ETL) configuration, the outside lever is always rigid and requires a key to retract the latch, while the inside push rail allows free egress at all times. As a fire-rated, non-dogging device, the latches cannot be held retracted, ensuring the door stays positively latched during a fire event.

• Storeroom function: outside lever always rigid, key retracts latch for entry.
• Free egress at all times from the inside push rail.
• Non-dogging as required for fire-rated applications.

Included Components

This device ships as a surface vertical rod exit device with ETL lever trim and a thermal pin for fire performance. It is provided less cylinder and less bottom rod, so a compatible mortise cylinder must be ordered separately for the storeroom function.
