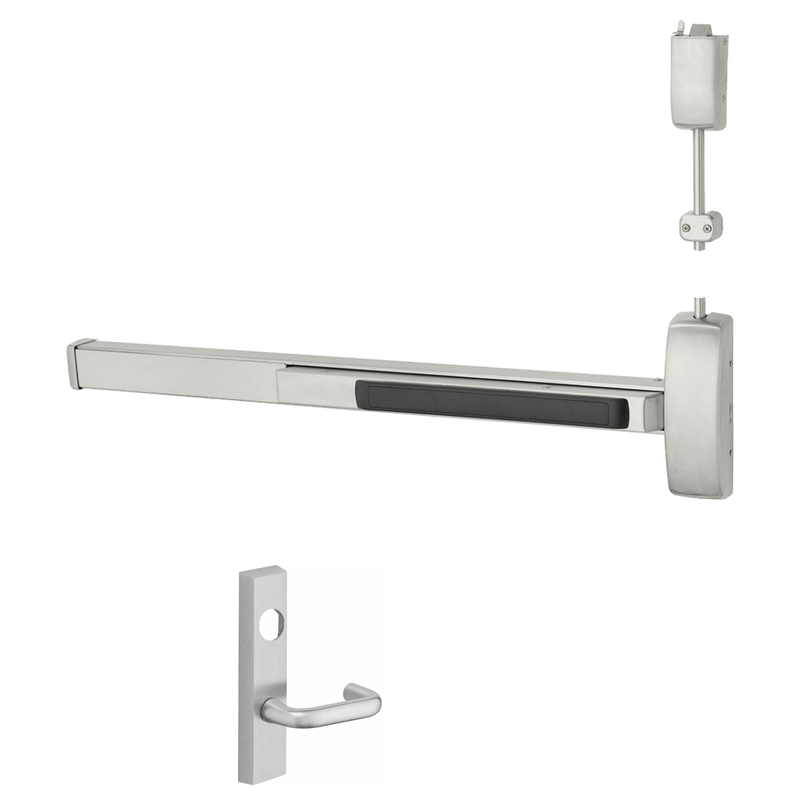

Sargent LC-12-NB-8713-F-ETJ-84 Fire Rated Surface Vertical Rod Exit Device, Classroom Function, For 33-36 Inch Width, 84 Inch Height Door, Less Cylinder, No Dogging, Less Bottom Rod, Thermal Pin

The Sargent LC-12-NB-8713-F-ETJ-84 is a fire-rated surface vertical rod exit device built for demanding commercial openings that require dependable egress and classroom-level access control. Designed for 33–36 inch wide doors up to 84 inches tall, it combines the 8700 series exit device with the ETJ trim in a classroom function, allowing the outside lever to be locked or unlocked by key. This configuration ships less cylinder for flexible keying and less bottom rod for a cleaner look and reduced maintenance at the floor. With no dogging and an integrated thermal pin, it meets fire-rated requirements while delivering long-term reliability.

Features

• Fire-rated surface vertical rod exit device suited for labeled openings.
• Classroom function lets the outside lever be locked or unlocked by key.
• Less bottom rod design reduces floor-level maintenance and debris issues.
• Ships less cylinder for integration with existing keying systems.
• No dogging feature supports fire-rated code compliance.
• Thermal pin construction provides added integrity under fire conditions.
• Sized for 33–36 inch wide doors and 84 inch door height.
• ETJ lever trim offers a durable, ADA-friendly grip.

Functional Details

The classroom function (12) allows the outside lever to be locked and unlocked using a key, while free egress is always available from the inside by pressing the push bar. As a fire-rated device, it is supplied without mechanical dogging so the latch remains active to meet labeled door requirements.

• Outside lever locked or unlocked by key.
• Latchbolt operated by lever from outside unless locked by key.
• Always operable from inside for free egress.

Arm Type Details

This unit uses the ETJ lever trim, a return-style lever designed for classroom applications. The lever retracts the top latch when unlocked, and key control at the trim governs whether outside access is permitted.

Included Components

The device includes the surface vertical rod exit chassis, top latch assembly, push rail, and ETJ lever trim. Cylinder and bottom rod are not included with this configuration.
