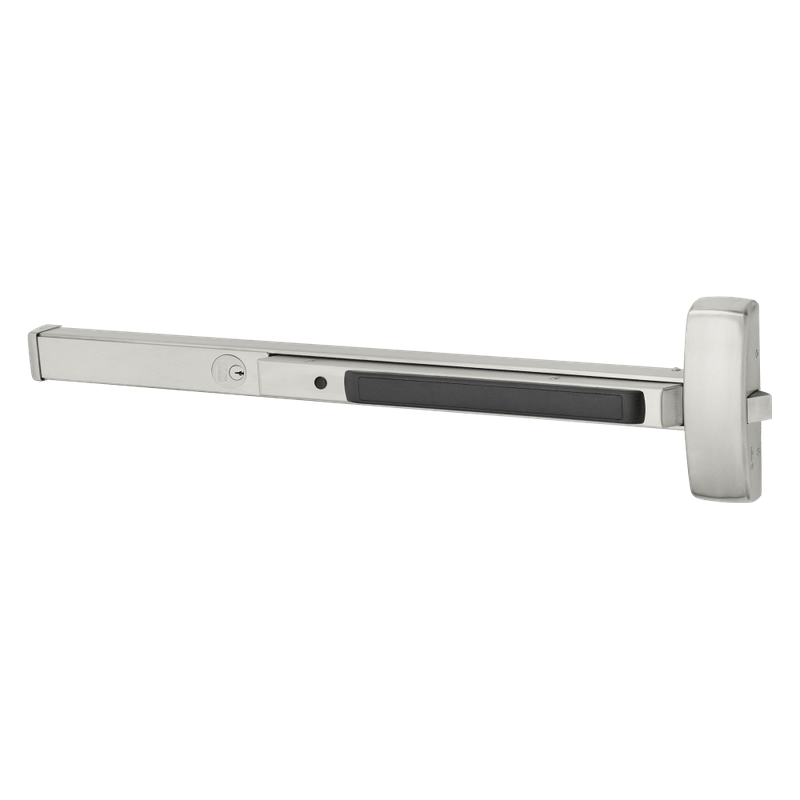

Sargent LC-16-8810-G Rim Exit Device, Exit Only, For 43-48" Dr Widths, Less Cylinder

The Sargent LC-16-8810-G is a heavy-duty rim exit device built for wide openings measuring 43 to 48 inches, making it a reliable choice for high-traffic commercial and institutional entrances. This exit-only configuration operates purely for egress, with no outside trim or key function required. Designed with the less-cylinder (LC) option, it ships without a cylinder so installers can pair it with their preferred keying system. As part of Sargent's 80 Series, this device delivers Grade 1 performance, smooth push-pad activation, and the durable construction expected for demanding environments where dependable egress is essential.

Features

• Rim-mounted exit device engineered for door widths between 43 and 48 inches.
• Exit-only function provides free egress without any outside operating trim.
• Less-cylinder (LC) design allows field installation of a compatible cylinder.
• Part of the Sargent 8800 Series, delivering ANSI/BHMA Grade 1 durability.
• The "16" prefix denotes the exit-only (no outside trim) configuration.
• Suited for wood or metal doors in commercial, educational, and healthcare settings.

Functional Details

The 16 function is a strictly exit-only device, meaning the push pad releases the latch for egress while the exterior has no trim or key access. This provides secure, one-directional passage ideal for emergency and fire exit doors.

• Exit Only - No outside trim.
