Sargent LC-56-8706-G-ETJ-84 Electrified Surface Vertical Rod Exit Device, Storeroom, For 43-48" Wd, 84" Ht Door, Less Cylinder

The Sargent LC-56-8706-G-ETJ-84 is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial and institutional applications. Built for doors measuring 43 to 48 inches wide and up to 84 inches tall, it delivers reliable storeroom-function operation where secure egress and controlled access are essential. The 56 electrification prefix provides electric latch retraction capability, while the ETJ trim offers a durable lever option for everyday use. Supplied less cylinder (LC) for flexible keying integration, this Grade 1 device from the 8700 series combines rugged construction with the dependable performance that facility managers expect from Sargent exit hardware.

Features

• Surface-mounted vertical rod configuration for use on tall 84" doors measuring 43–48" in width.
• Grade 1 ANSI/BHMA certified construction for high-traffic, long-term durability.
• 56 electrification prefix provides electric latch retraction for access control integration.
• Storeroom function keeps the outside lever locked while allowing free egress at all times.
• ETJ (J) lever trim offers a comfortable, ADA-compliant operation.
• Supplied less cylinder, allowing you to match your facility's existing keying system.

Functional Details

The storeroom function secures the opening so that the outside lever remains locked at all times, requiring a key to gain access, while the inside push bar always permits free, immediate egress. With the 56 electric latch retraction feature, applying power retracts the latch to allow push/pull or remote access control operation.

• Outside lever is always locked.
• Key retracts latch for entry.
• Inside push bar always allows free egress.
• Electric latch retraction when power is applied.

Arm Type Details

This device uses a surface-mounted vertical rod design, with top and bottom latch points that engage the door frame and threshold. This dual-point latching provides enhanced security and stability on wide, tall openings compared to single-point rim devices.

Included Components

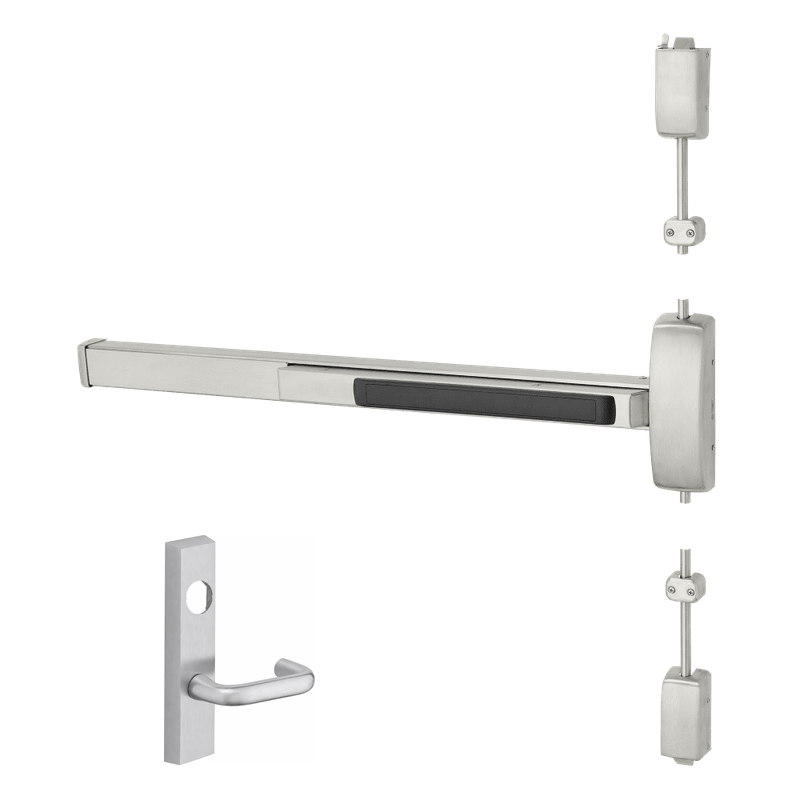

The device ships with the exit chassis, surface-mounted vertical rods, top and bottom latches, and the ETJ lever trim. A mortise cylinder is not included and must be ordered separately to complete keying.
