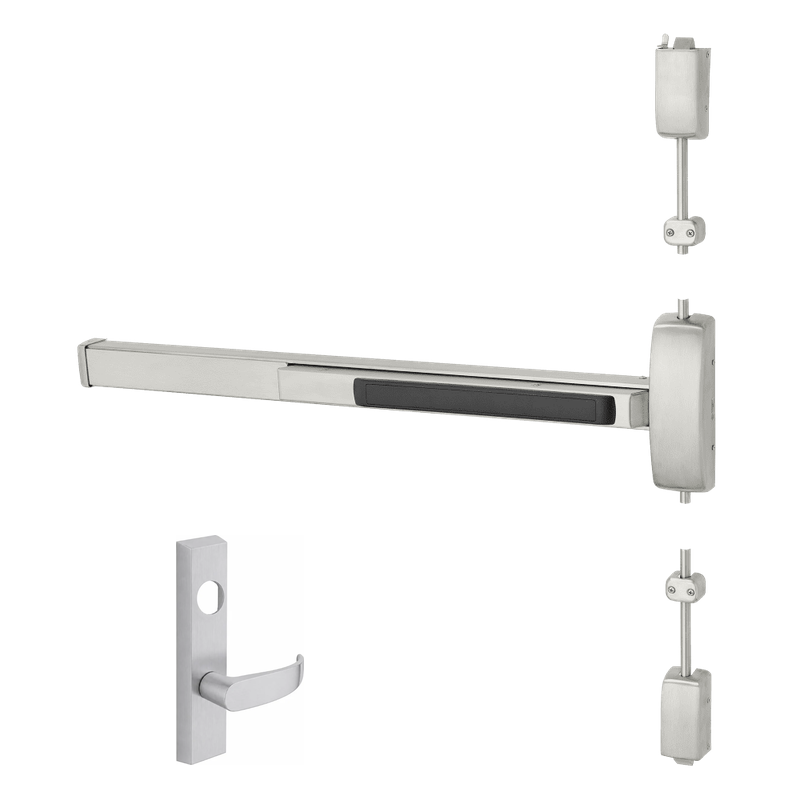

Sargent LC-56-8706-J-ETP-84 Electrified Surface Vertical Rod Exit Device, Storeroom, For 37-42" Wd, 84" Ht Door, Less Cylinder

The Sargent LC-56-8706-J-ETP-84 is a heavy-duty electrified surface vertical rod exit device built for demanding commercial openings. Designed for doors measuring 37 to 42 inches wide and up to 84 inches tall, it delivers reliable storeroom-function operation with electric latch retraction (EL) capability through the 56 electrified option. The J escutcheon trim with the ETP lever provides secure keyed access from the outside, while free egress is always available from the inside. Supplied less cylinder, it accepts a standard mortise cylinder of your choosing. This Grade 1 device is ideal for fire exits, stairwells, and secure perimeter doors where controlled entry and dependable panic hardware are essential.

Features

• Electrified 56 option provides electric latch retraction for access control integration.
• Storeroom function keeps the outside trim locked while the latch retracts for entry.
• Surface-mounted vertical rod design engages top and bottom latch points for added security.
• Sized for wide doors from 37 to 42 inches with an 84-inch height rod configuration.
• ETP lever trim with J escutcheon offers durable, comfortable keyed operation.
• Furnished less cylinder to accommodate existing keying systems.
• Free egress at all times for life-safety compliance.

Functional Details

The storeroom function means the outside lever or trim is always locked and entry requires a key. Using the key retracts the latch for access, and the outside trim relocks automatically once the door closes. The electrified 56 option allows the latch to be retracted remotely for momentary or sustained access control.

• Outside trim is continuously locked; key retracts latch for entry.
• Latchbolt is retracted by key or electric latch retraction; outside trim remains locked.
• Inside lever or push bar always allows free egress.

Arm Type Details

This device uses a surface-mounted vertical rod configuration with top and bottom latch points. The rods travel vertically along the door face, securing the opening at the header and threshold for improved resistance and alignment on wide door applications.

Included Components

The device ships with the 8706 surface vertical rod exit mechanism, ETP lever with J escutcheon trim, top and bottom latch assemblies, and mounting hardware. A compatible mortise cylinder must be ordered separately.
