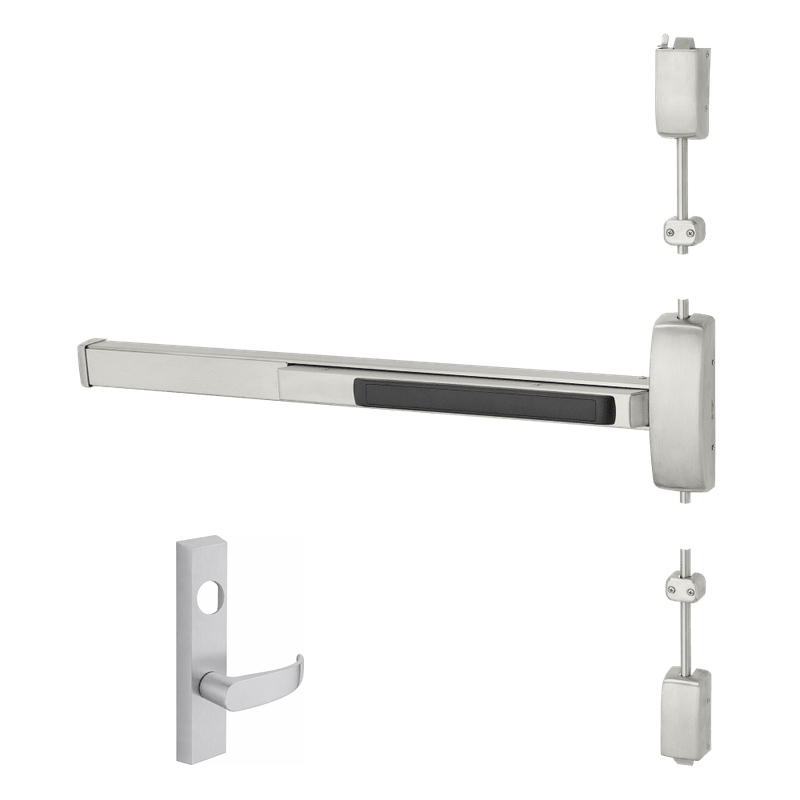

Sargent LC-56-8706-J-ETP-96 Electrified Surface Vertical Rod Exit Device, Storeroom, For 37-42" Wd, 96" Ht Door, Less Cylinder

The Sargent LC-56-8706-J-ETP-96 is a heavy-duty electrified surface vertical rod exit device built for demanding commercial openings up to 96 inches tall and 37 to 42 inches wide. Designed for storeroom function with the ETP electrified trim, it combines reliable panic egress with controlled access from the exterior. The 56- electrification prefix supports electric latch retraction or signaling for integration into access control systems, while the J design lever offers a durable, comfortable grip. Shipped less cylinder (LC), it lets you specify your preferred mortise cylinder for keying compatibility. This device delivers dependable, code-compliant performance for high-traffic institutional and commercial doors.

Features

• Surface-mounted vertical rod configuration for double-door and tall-door applications.
• Storeroom function keeps the outside lever locked at all times, with the key retracting the latch for entry.
• Electrified ETP trim allows integration with access control and electrical monitoring.
• Sized for doors 37" to 42" wide and up to 96" tall.
• J design lever provides a sturdy, ergonomic feel for everyday use.
• Supplied less cylinder so you can match existing keying systems.
• UL listed for panic hardware on non-fire-rated openings.

Functional Details

The storeroom function provides secure, controlled access: the exterior lever remains locked continuously, and a key is used to momentarily retract the latch for entry. Free egress is always available from the interior by pressing the push bar. The electrified ETP trim adds remote operation or monitoring capability depending on configuration.

• Outside lever is always locked.
• Key retracts latch to gain entry.
• Latchbolt is deadlocking.
• Free egress at all times from the inside.

Included Components

This device ships as a complete surface vertical rod exit device with the ETP electrified lever trim and top and bottom rod assemblies. A mortise cylinder is not included and must be ordered separately.
