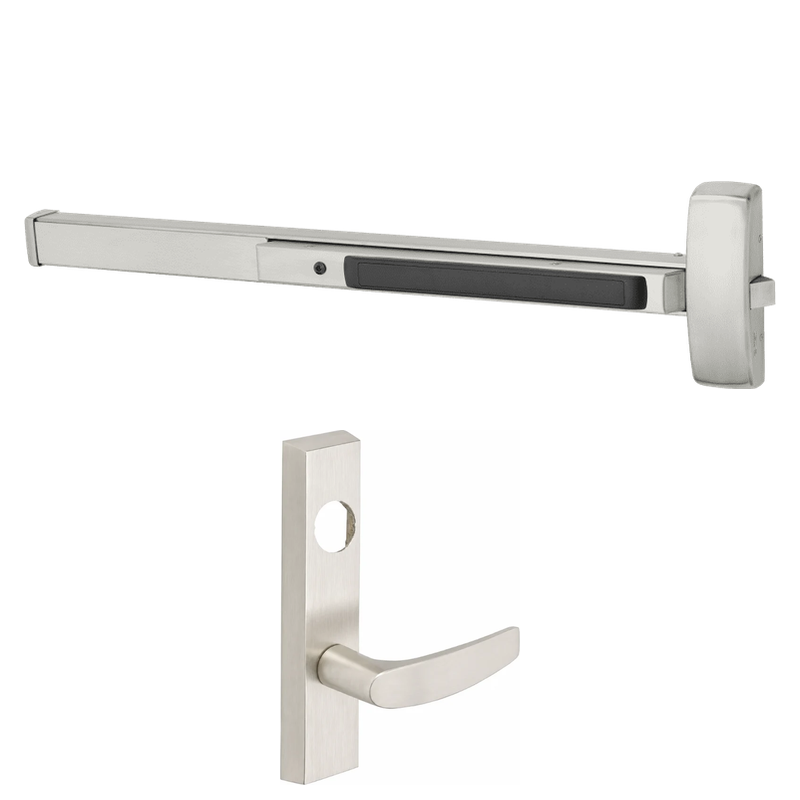

Sargent LC-56-8804-F-ETB Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 33-36 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-F-ETB is a heavy-duty electrified rim exit device built for demanding commercial and institutional openings. Designed for doors measuring 33 to 36 inches wide, it combines the dependable 8800 Series rim mechanism with electric latch retraction (ELR) for remote release and access control integration. This night latch configuration pairs the ETB trim, allowing the exterior lever to retract the latchbolt once the device is energized. Supplied less cylinder for use with your preferred keying system and fitted with hex key dogging for secure manual hold-back, it delivers reliable Grade 1 performance, smooth operation, and long-term durability in high-traffic environments.

Features

• Electric latch retraction allows the latch to be withdrawn remotely for access control and automatic operator coordination.
• Night latch function uses the exterior ETB lever trim to retract the latchbolt when the device is energized.
• Sized for single doors with a 33 to 36 inch width.
• Supplied less cylinder so you can match existing keying requirements.
• Hex key dogging holds the pushpad and latch retracted for push/pull operation.
• Grade 1 rim design engineered for durability in heavy-use applications.

Functional Details

The night latch function operates through the exterior ETB lever, which retracts the latchbolt only when the exit device is electrically energized, while free egress is always available from the interior pushpad. Electric latch retraction enables remote and scheduled control of the opening.

• Electric Latch Retraction (ELR) retracts the latch electrically for remote dogging and access control.
• Free egress at all times via the interior push pad.
• Field reversible for left or right hand doors.

Arm Type Details

This device uses the ETB escutcheon lever trim on the exterior. The ETB trim provides a lever-operated night latch pull that retracts the latchbolt only when the device is powered, offering controlled entry while maintaining code-compliant free egress from inside.

Included Components

The exit device ships with the ELR mechanism, ETB night latch lever trim, hex key dogging hardware, and standard mounting components. A cylinder is not included and must be ordered separately.
