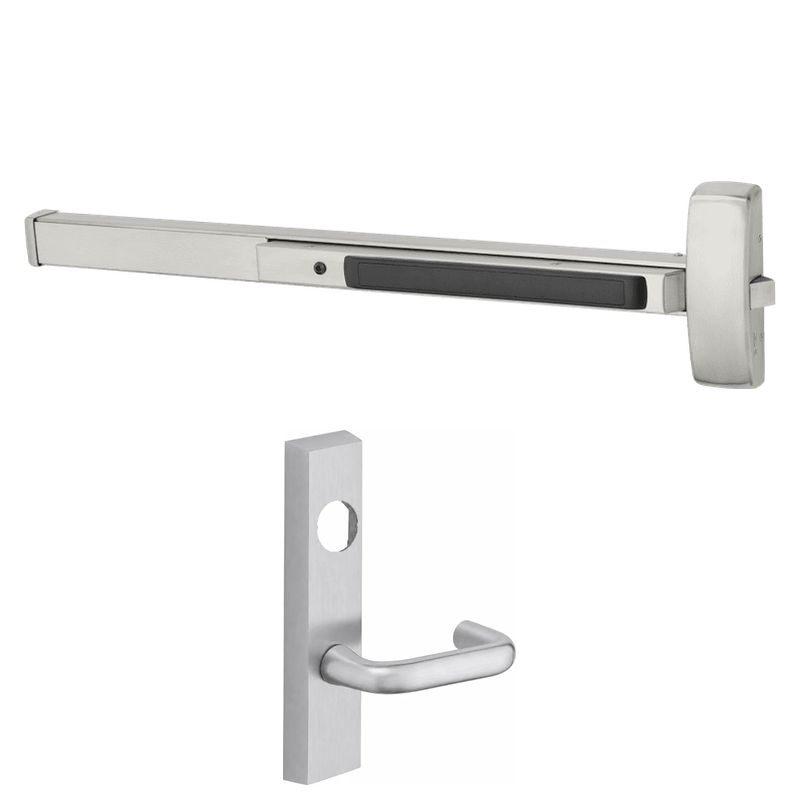

Sargent LC-56-8804-F-ETJ Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 33-36 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-F-ETJ is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require reliable access control. Designed for doors measuring 33 to 36 inches wide, it combines a Grade 1 rim exit mechanism with electric latch retraction (ELR), allowing the latch to be retracted electronically for momentary or extended access. The device operates in night latch function, where the outside ETJ lever controls access while the inside push rail always allows free egress. Supplied less cylinder for field-matched keying, it includes hex key dogging for mechanical hold-open and the F fire-rated configuration for labeled door assemblies.

Features

• Grade 1 electrified rim exit device engineered for demanding commercial and institutional applications.
• Electric latch retraction (ELR) allows the latch to be retracted electronically for remote access and controlled entry.
• Night latch function with outside ETJ lever trim for secure, access-controlled operation.
• Sized for doors 33 to 36 inches in width.
• Supplied less cylinder (LC) so the device can be keyed to an existing system.
• Hex key dogging holds the push bar depressed for push/pull operation during high-traffic periods.
• F designation indicates fire-rated construction for labeled openings.

Functional Details

The night latch function keeps the outside lever controlling access to the opening while the interior push rail provides unrestricted free egress at all times. When energized, electric latch retraction pulls the latch back electronically, permitting push/pull entry without mechanical dogging and supporting integration with access control and remote release systems.

Arm Type Details

The ETJ trim is a lever-style escutcheon trim used with the night latch function. The outside lever operates the latch for authorized entry, while the exit device itself always permits free egress from the secure side.
