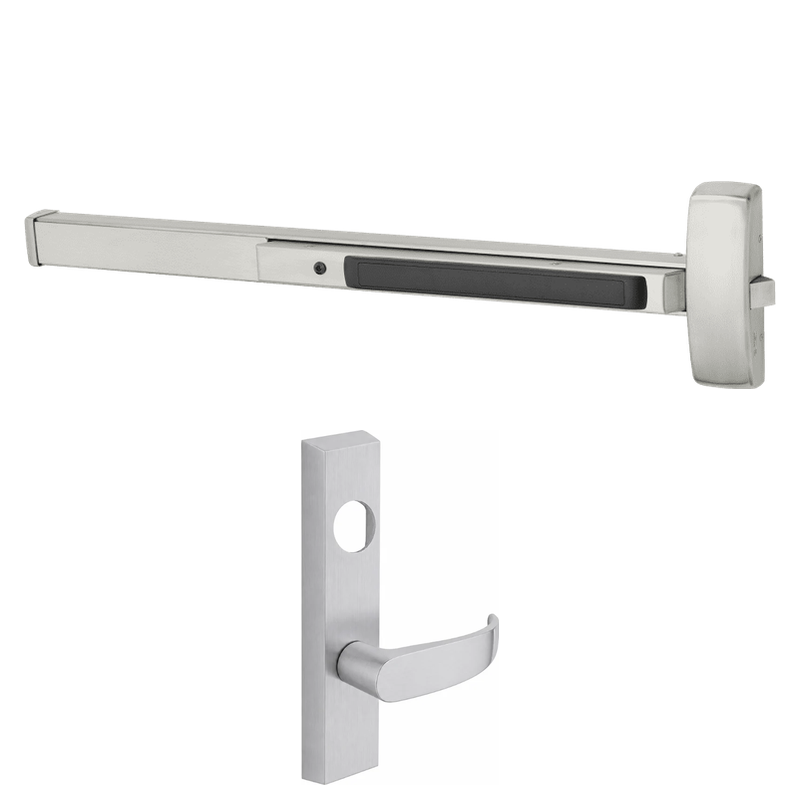

Sargent LC-56-8804-F-ETP Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 33-36 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-F-ETP is a Grade 1 electrified rim exit device built for high-traffic commercial openings that require controlled access and reliable panic egress. Configured with the 8804 night latch function and electric latch retraction (ELR), it allows the latch to be remotely retracted for push/pull operation while the ETP trim provides keyed outside access. Designed for doors measuring 33 to 36 inches wide, this device ships less cylinder so you can match your existing keyway, and includes hex key dogging for mechanical hold-back during low-security periods. It's a dependable choice for access-controlled entrances, offices, and institutional facilities.

Features

• Grade 1 rated rim exit device suitable for demanding commercial and institutional use.
• 8804 night latch function with ETP exterior trim for keyed outside entry.
• Electric latch retraction (ELR) allows remote retraction of the latch for integration with access control.
• Sized for doors 33 to 36 inches in width.
• Supplied less cylinder to accommodate your preferred keying system.
• Hex key dogging enables manual latch hold-back for push/pull operation.

Functional Details

The 8804 night latch function provides exit at all times through the push bar, while the outside lever or trim is controlled by a key. With electric latch retraction energized, the latch is pulled back electrically to permit free entry; de-energizing returns the device to latched operation.

• 8804 Night Latch – Exit only by pushpad. Key retracts latch bolt for entrance.
• Electric Latch Retraction (ELR) retracts the latch electrically for remote operation.

Included Components

This order includes the 56-8804 electrified rim exit device chassis with ETP trim and electric latch retraction. A cylinder is not included and must be ordered separately.
