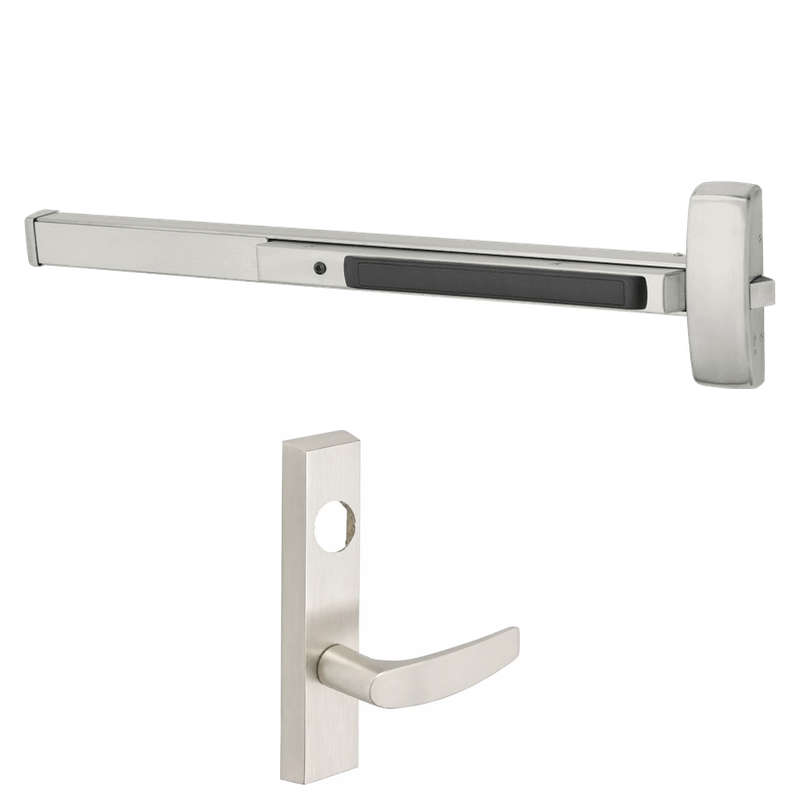

Sargent LC-56-8804-G-ETB Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 43-48 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-G-ETB is a heavy-duty electrified rim exit device built for demanding commercial and institutional openings. Designed to fit doors between 43 and 48 inches wide, it combines the dependable Night Latch (ETB) function with Electric Latch Retraction (ELR), allowing the latch to be electrically withdrawn for remote access control and automatic operator integration. The 56 prefix indicates electric latch retraction, while the G trim adds the ETB lever pull. Supplied less cylinder for flexible keying, this Grade 1 device also features convenient hex key dogging for secure, tool-based hold-open. It's a reliable choice for access-controlled entrances requiring code-compliant egress.

Features

• Electric latch retraction allows remote and automatic unlocking of the device.
• Night Latch (ETB) function provides exit at all times with controlled outside access.
• Sized for doors measuring 43 to 48 inches in width.
• Hex key dogging holds the latch retracted for push-pull operation.
• Supplied less cylinder to accommodate existing keying systems.
• Grade 1 rated for high-frequency, high-abuse applications.
• G (ETB) lever trim offers durable, accessible outside operation.

Functional Details

The 56 electric latch retraction (ELR) feature electrically withdraws the latch bolt, enabling the door to be pushed or pulled freely when energized and integrated with access control or automatic operators. In the Night Latch configuration, free egress is always available while outside entry is controlled by the ETB trim.

• Electric latch retraction (ELR) for remote latch retraction and momentary or sustained operation.
• Night Latch (NL) function: Latchbolt retracted by outside lever when unlocked.
• Hex key dogging allows mechanical hold-back of the latch.

Arm Type Details

The G trim designation corresponds to the ETB lever design, a contemporary lever pull that retracts the latch for outside access during the Night Latch function. It is engineered for smooth, durable operation in high-traffic environments.

Included Components

This device ships as a complete rim exit device with the ETB (G) outside trim and electric latch retraction mechanism. A cylinder is not included and must be ordered separately.
