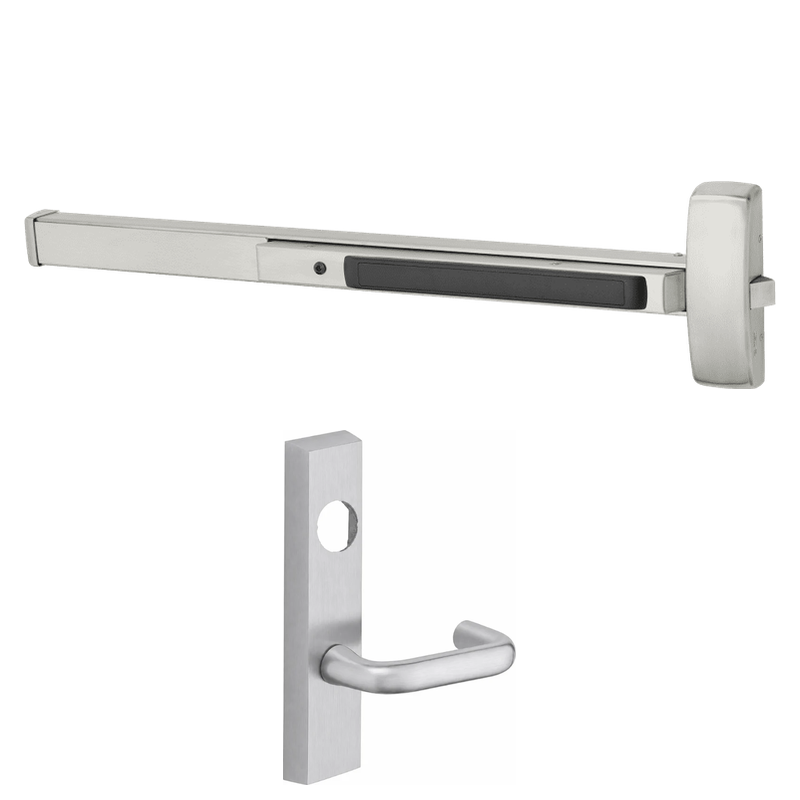

Sargent LC-56-8804-G-ETJ Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 43-48 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-G-ETJ is a heavy-duty electrified rim exit device built for wide openings measuring 43 to 48 inches. Featuring Electric Latch Retraction (ELR), this device allows the latch to be retracted electrically for remote access control, access management systems, or momentary free passage while still meeting life-safety egress requirements. Configured with the Night Latch function and ETJ trim, it provides secure, controlled entry from the outside while permitting unobstructed exit at all times. It ships less cylinder for keying flexibility and includes hex key dogging to hold the latch retracted mechanically. A Grade 1 ANSI/BHMA rating makes it ideal for high-traffic commercial and institutional applications.

Features

• Electric latch retraction (ELR) enables remote, electrically controlled latch operation for integration with access control systems.
• Night latch (J) function allows key-controlled entry while permitting free egress at any time.
• Sized for wide doors ranging from 43 to 48 inches in width.
• Supplied less cylinder, allowing you to install the cylinder and keying of your choice.
• Hex key dogging holds the pushbar depressed and latch retracted for push-pull operation.
• ETJ lever trim provides a durable exterior operating handle.
• Grade 1 ANSI/BHMA rating ensures durability in demanding, high-use environments.

Functional Details

The 8804 Night Latch function uses the outside key to retract the latch and gain entry, while the inside pushbar always allows immediate free egress. With Electric Latch Retraction, the latch bolt is held retracted electrically, permitting remote release and hands-free passage during authorized periods.

• Night Latch (ETJ) — Thumbpiece retracts latch bolt. Key locks or unlocks thumbpiece.
• Electric Latch Retraction (ELR) retracts the latch electrically for remote operation or momentary dogging.
• Free egress at all times by depressing the pushpad.

Arm Type Details

This is a rim-mounted exit device featuring an ETJ lever/thumbpiece trim on the exterior. The pushpad-style actuator spans the door for intuitive egress, while the surface-mounted rim latch engages a strike on the frame.

Included Components

The device includes the rim exit chassis, ETJ exterior trim, hex key for dogging, and mounting hardware. The cylinder is not included and must be ordered separately.
