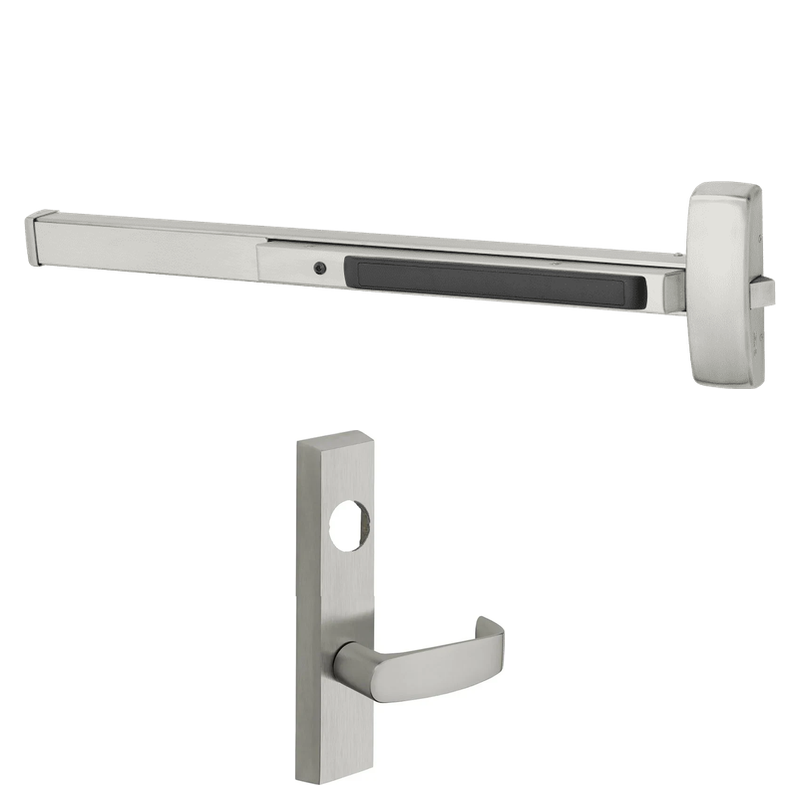

Sargent LC-56-8804-G-ETL Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 43-48 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-G-ETL is a Grade 1 electrified rim exit device built for demanding commercial openings measuring 43 to 48 inches in width. Featuring Electric Latch Retraction (ELR), it allows remote unlatching for access control integration, making it ideal for buildings with card readers, timers, or automatic operators. Configured with the night latch function and the ET trim with the G lever design, it provides key-controlled entry from the exterior while maintaining free egress. This unit ships less cylinder and includes hex key dogging for convenient mechanical hold-back. Durable construction and UL-listed performance make it a reliable choice for high-traffic entrances.

Features

• Electric Latch Retraction (ELR) enables remote unlatching for integration with access control systems.
• Night latch function allows key-controlled entry from outside while permitting free egress at all times.
• Sized for doors measuring 43 to 48 inches in width.
• Supplied less cylinder, allowing you to match your facility's existing keying system.
• Hex key dogging holds the latch retracted for push/pull operation during business hours.
• ET trim with the G lever design provides a durable, comfortable grip.
• Grade 1 rim exit device engineered for heavy-duty commercial use.

Functional Details

The night latch (NL) function operates with the exit device providing free egress at all times while the outside lever or pull is controlled by a key. Electric Latch Retraction retracts the latch electrically on command, allowing the door to be pushed or pulled open for hands-free or access-controlled entry.

• Electric Latch Retraction (ELR) - latchbolt is retracted by electric solenoid.
• Night Latch - key retracts latch; no outside operation when locked.
• Free egress at all times from inside.

Included Components

This device ships with the rim exit device chassis, ET trim with the G lever design, and hex key dogging hardware. A cylinder is not included and must be ordered separately to complete the keyed exterior function.
