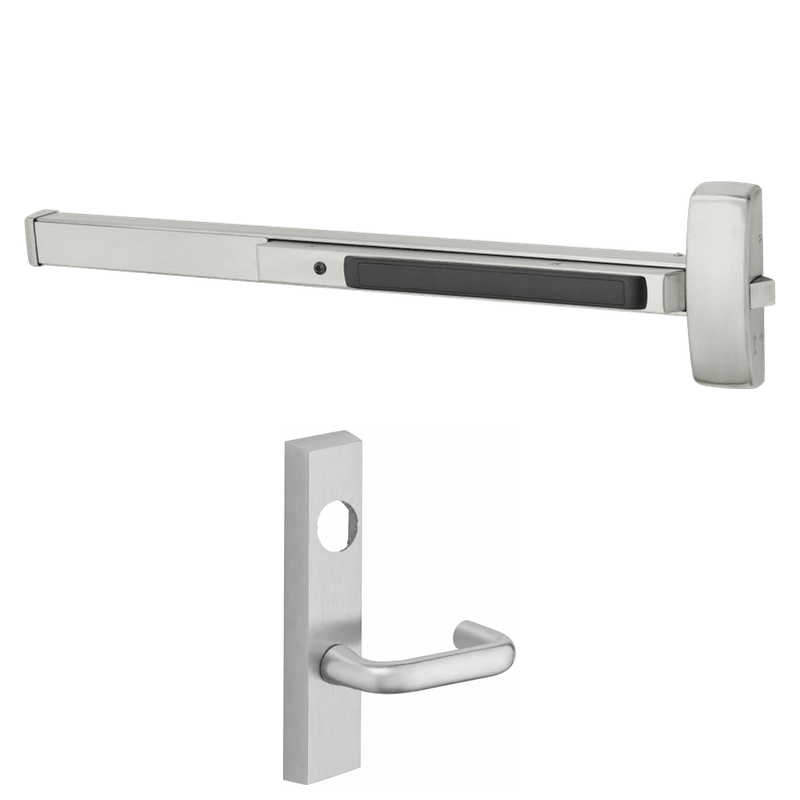

Sargent LC-56-8804-J-ETJ Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 37-42 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-J-ETJ is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require remote access control. Designed for doors ranging from 37 to 42 inches wide, this unit combines reliable panic exit hardware with electric latch retraction (ELR), allowing the latch to be pulled back electronically for push/pull or remote access. It operates in the night latch (08) function, meaning the outside trim with the J lever is controlled by a key. Supplied less cylinder for flexible keying, it features hex key dogging and the ETJ escutcheon trim, making it a dependable choice for schools, offices, and institutional buildings.

Features

• Electric latch retraction (56 option) allows the latch bolt to be retracted remotely for access control and automatic operation.
• Night latch (8804) function operates the outside lever by key for secure entry while maintaining free egress.
• Sized for doors measuring 37 to 42 inches in width.
• Supplied less cylinder (LC) so the device can be matched to an existing keying system.
• Hex key dogging holds the latch in a retracted position for push/pull operation during high-traffic periods.
• ETJ escutcheon trim with the J lever design provides a durable, attractive pull.
• Rim-mounted design installs on the surface of the door for straightforward servicing.

Functional Details

The 8804 night latch function provides free egress from the inside at all times while securing entry from the outside. The outside J lever is controlled by a key, and the electric latch retraction allows the latch to be withdrawn electronically for remote or automatic access.

• Pushpad retracts latch for exit.
• Key retracts latch for entry.
• Electric latch retraction allows remote operation.

Arm Type Details

This device uses the ETJ escutcheon trim with the J lever style, offering a comfortable key-controlled pull on the exterior of the opening.

Included Components

The device ships with the rim exit chassis, ETJ escutcheon trim with J lever, and hex key dogging hardware. A cylinder is not included and must be ordered separately.
