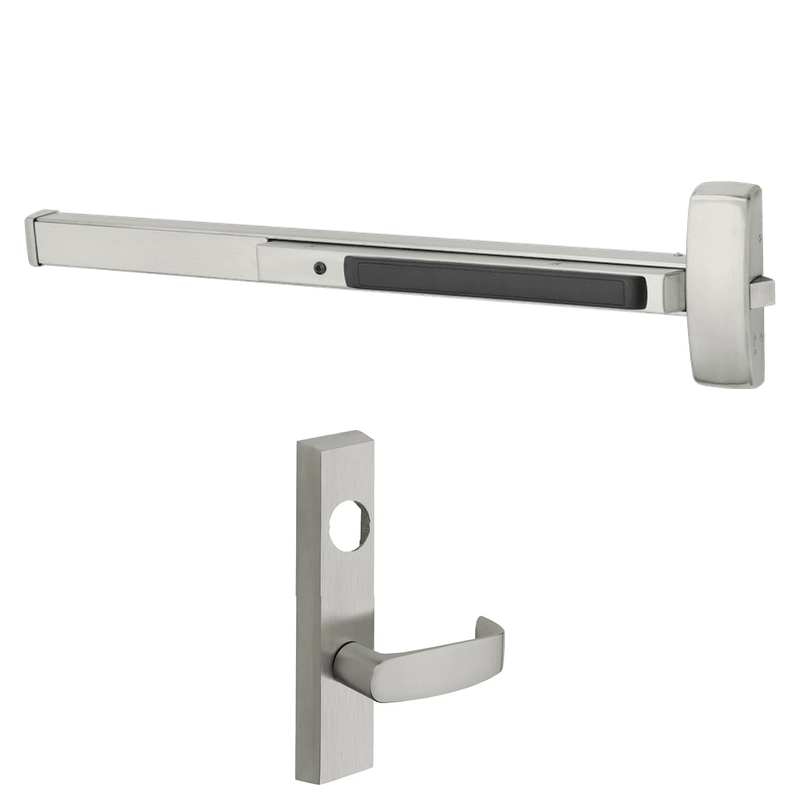

Sargent LC-56-8804-J-ETL Electrified Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 37-42 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8804-J-ETL is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that require reliable access control. Built with electric latch retraction (ELR), it electrically withdraws the latch bolt for remote unlocking, momentary access, or integration with automatic operators and card readers. This configuration features the Night Latch (NL) function with the J (ETL) lever trim, less cylinder for field-fitting your preferred keying, and sized to fit doors measuring 37 to 42 inches wide. Hex key dogging allows the device to be mechanically held in a retracted state for push-pull operation during peak hours. It's a dependable choice for schools, healthcare, and institutional facilities.

Features

• Electric latch retraction (ELR) electrically retracts the latch bolt for remote access and operator integration.
• Night latch (NL) function provides key-controlled access with the latch secured at all times.
• Rim-mounted design for surface installation on single or double doors.
• Fits door widths from 37 to 42 inches.
• J (ETL) lever trim offers durable, comfortable operation on the exterior side.
• Supplied less cylinder, allowing you to match your existing keying system.
• Hex key dogging holds the latch retracted for push-pull convenience.

Functional Details

The 8804 Night Latch function keeps the latch bolt locked from the outside at all times, with entry granted only by key. Combined with electric latch retraction, the device can be remotely unlocked via an access control signal, dogging the latch electronically rather than mechanically.

• Night Latch (NL): Exit only. Latchbolt retracted by key from outside.
• Electric Latch Retraction: latch bolt is electrically retracted to allow free operation.

Arm Type Details

This is a rim exit device with surface vertical mounting on the pull side of the door. The latch engages a surface-mounted strike on the frame, and the push rail spans the device for intuitive egress.

Included Components

Device ships with the rim exit chassis, J (ETL) lever trim, surface strike, and mounting hardware. Cylinder is not included and must be ordered separately.
