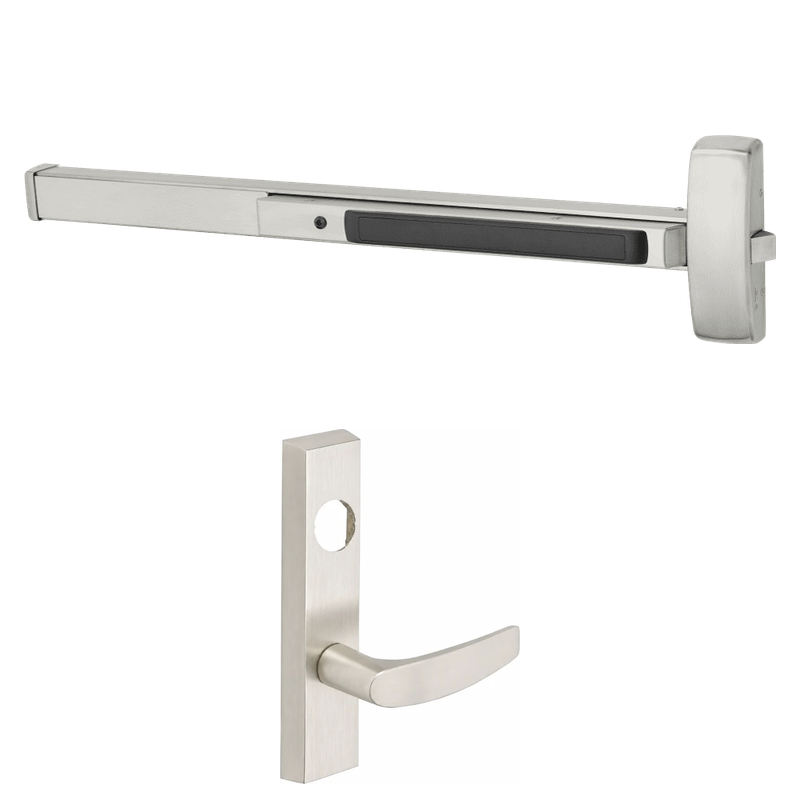

Sargent LC-56-8875-F-ETB-12V Electrified Rim Exit Device, Fail Safe, For 33-36" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent LC-56-8875-F-ETB-12V is a heavy-duty electrified rim exit device engineered for secure access control on commercial openings with 33" to 36" door widths. Built with electric latch retraction (ELR) and a fail-safe configuration, it allows remote unlocking and latch pull-back from an access control system, making it ideal for integration with card readers, keypads, and automatic operators. The 8875 trim features the ETB lever design for outside access, and the device ships less cylinder so you can match your existing keying system. Operating on 12V DC, this UL-listed panic device delivers reliable, high-traffic performance for institutional, healthcare, and office applications.

Features

• Electric latch retraction enables remote latch pull-back for momentary or sustained access control.
• Fail-safe design unlocks the outside trim on loss of power for free egress and controlled access.
• Engineered for 33" to 36" wide doors in rim application.
• Supplied less cylinder, allowing you to install your preferred mortise cylinder and keying.
• ETB lever trim provides durable, ADA-compliant outside operation.
• Operates on 12V DC for compatibility with common access control power supplies.
• UL listed for panic hardware and life-safety egress.

Functional Details

The 56- electric latch retraction function uses an internal motor to retract the latch bolt electronically, permitting push/pull operation or hands-free entry when energized. In the fail-safe (F) configuration, the outside trim unlocks when power is removed, ensuring access during power failures while maintaining free egress at all times.

• Electric latch retraction (ELR) for remote dogging and access control integration.
• Fail-safe operation unlocks outside trim upon power loss.
• 12V DC operation.
• Free egress at all times via the push bar.

Included Components

The device includes the 8875 rim exit chassis with electric latch retraction, the ETB lever trim for outside access, and mounting hardware. A compatible mortise cylinder must be ordered separately as this unit ships less cylinder.
