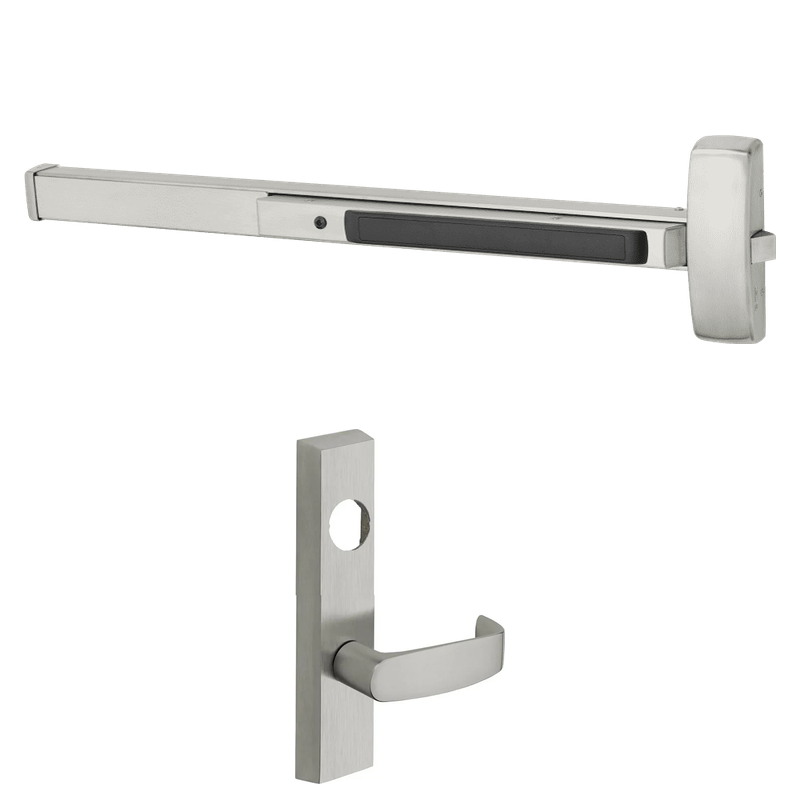

Sargent LC-56-8875-G-ETL-24V Electrified Rim Exit Device, Fail Safe, For 43-48" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent LC-56-8875-G-ETL-24V is a heavy-duty electrified rim exit device engineered for high-traffic openings that demand reliable access control and dependable egress. Built for door widths between 43 and 48 inches, it features electric latch retraction (ETL) that pulls back the latch to allow remote operation, push/pull function, and seamless integration with access control systems. Configured as fail safe and operating on 24V, this device supports less-cylinder installation for field-matched keying and includes the 'G' style trim designation. As part of Sargent's respected 80 Series, it delivers Grade 1 durability and consistent performance in commercial and institutional environments.

Features

• Electric latch retraction (ETL) allows remote unlatching for controlled access and integration with automatic operators.
• Fail safe configuration unlocks the latch when power is removed, supporting emergency egress and life-safety requirements.
• Sized for wide door applications covering 43" to 48" door widths.
• Operates on 24V DC for compatibility with low-voltage access control systems.
• Less cylinder design lets you install your preferred cylinder for keyed override.
• Grade 1 rim-mounted construction built for high-frequency commercial use.

Functional Details

The electric latch retraction function uses a built-in motor to withdraw the latch bolt, allowing the door to be pushed or pulled freely without actuating the push rail. When paired with an access control system, this enables controlled entry and supports momentary or continuous dogging electrically. In the fail safe mode, loss of power retracts or releases the latch to permit free egress and entry.

• Electric latch retraction (ETL) for remote operation and access control integration.
• Fail safe operation releases the latch upon power loss.
• 24V DC operation.

Included Components

This device ships as a rim exit device assembly with the 'G' trim designation and electric latch retraction hardware. A mortise or rim cylinder is not included and must be ordered separately to complete the keyed function.
