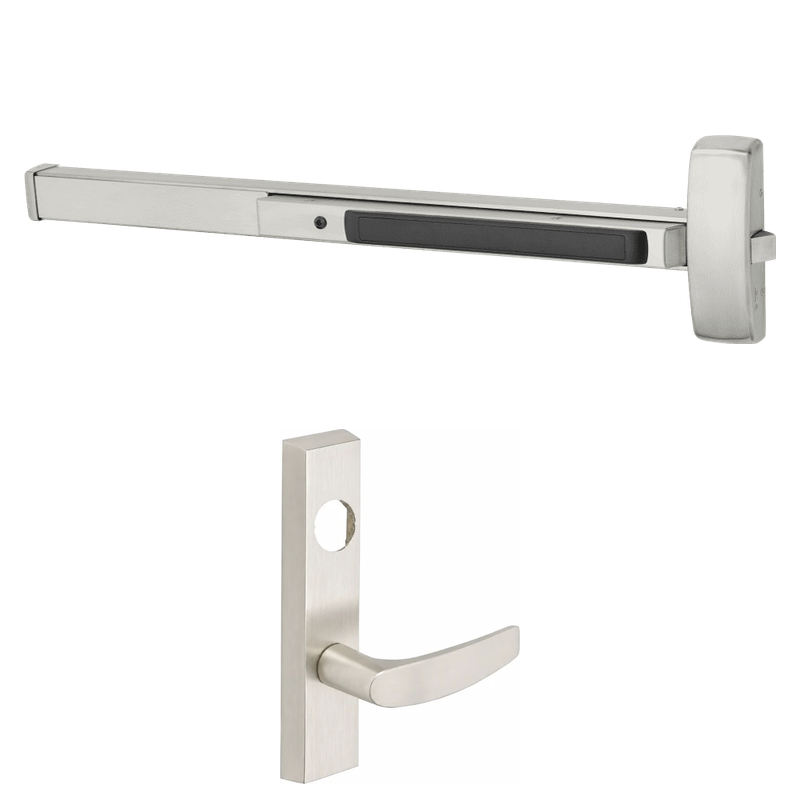

Sargent LC-56-8875-J-ETB-12V Electrified Rim Exit Device, Fail Safe, For 37-42" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent LC-56-8875-J-ETB-12V is a heavy-duty electrified rim exit device engineered for commercial openings that demand reliable access control and dependable egress. Built with electric latch retraction (ELR) and a fail-safe design, it operates on 12V to retract the latch electrically, allowing for remote unlocking and seamless integration with access control systems. This configuration covers 37" to 42" door widths and includes the ETB escutcheon trim with a lever handle for controlled entry. Supplied less cylinder to accommodate your preferred keying, it combines Sargent's proven durability with the flexibility professionals expect in demanding high-traffic environments.

Features

• Electrified rim exit device with electric latch retraction for remote unlocking and access control integration.
• Fail-safe operation retracts the latch when power is applied, supporting free egress and controlled entry.
• Sized for 37" to 42" door widths, making it suitable for wider commercial openings.
• ETB escutcheon trim with lever handle (J design) provides reliable outside access.
• Operates on 12V for compatibility with common access control power supplies.
• Supplied less cylinder, allowing you to install your own mortise cylinder for keying flexibility.
• Non-handed design simplifies installation and stocking.

Functional Details

The 56-prefix electric latch retraction function uses an internal motor to retract the exit device latch electrically. When energized, the latch pulls back to allow push/pull or remote operation, and as a fail-safe device the trim unlocks on loss of power to permit free entry while egress is always available from the inside.

• Electric latch retraction allows remote unlatching and dogging via access control.
• Fail safe: trim is unlocked when power is removed.
• Motor-driven latch retraction reduces wear compared to solenoid designs.

Arm Type Details

The ETB trim is an escutcheon-style lever trim that mounts to the exterior face of the door. The lever operates the latch when the device is unlocked, providing controlled access, while the push rail on the interior delivers immediate, code-compliant egress at all times.

Included Components

This device ships as a complete rim exit device assembly with the ETB escutcheon lever trim and electric latch retraction hardware. A cylinder is not included and must be ordered separately.
