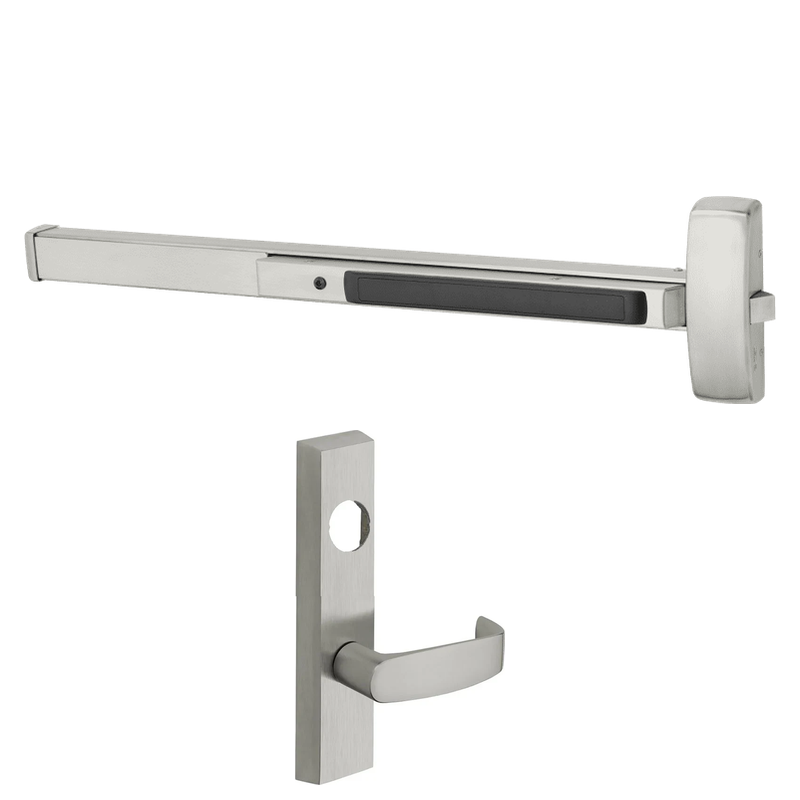

Sargent LC-56-8876-F-ETL-12V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-F-ETL-12V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that demand reliable access control. Featuring Electric Latch Retraction (ETL) operated on 12V DC, this device allows remote unlatching for integration with card readers, keypads, or building automation systems. Configured in a fail secure mode, the latch stays locked when power is interrupted, preserving security during outages. Designed for doors 33 to 36 inches wide, it ships less cylinder for flexible keying and includes the 8800 series ETL function. The 56 prefix indicates the electric latch retraction feature, making it a dependable choice for access-controlled entryways.

Features

• Electric Latch Retraction (ETL) enables remote unlatching for integration with access control hardware.
• Operates on 12V DC power for compatibility with low-voltage control systems.
• Fail secure configuration keeps the device locked when power is lost, maintaining security.
• Sized for door widths between 33 and 36 inches.
• Supplied less cylinder, allowing you to match existing keying systems.
• Hex key dogging holds the latch retracted for push/pull operation during peak traffic.
• Rim-mounted design installs on the surface of the door for straightforward servicing.

Functional Details

The 8876 ETL function provides electric latch retraction with a fail secure response. When energized, the latch retracts to allow free passage; when de-energized, the latch remains projected and the opening stays secured. Key access from the outside retracts the latch for authorized entry.

• Fail Secure - Power off locks lever.
• Key retracts latch.
• Electric latch retraction.
