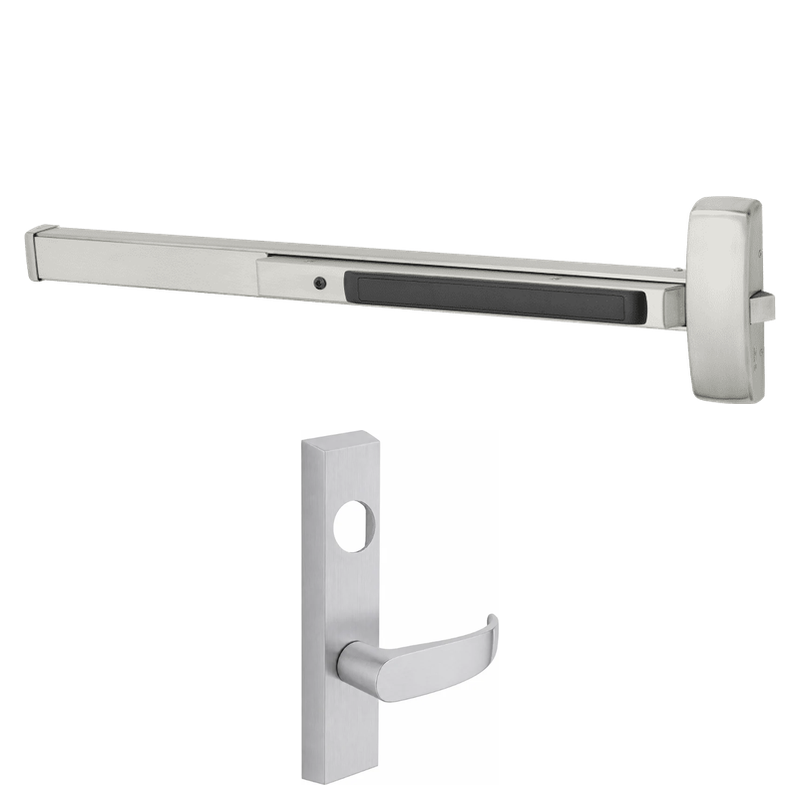

Sargent LC-56-8876-F-ETP-24V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-F-ETP-24V is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that require controlled access with reliable egress. Built with electric latch retraction (ELR) and a fail secure configuration, it keeps the outside lever locked when power is removed while allowing free exit at all times. Operating on 24V, this device suits doors measuring 33 to 36 inches wide and ships less cylinder, giving installers flexibility to pair it with a preferred mortise cylinder. The ETP trim adds exterior access, and hex key dogging allows the latch to be held retracted for push-pull operation during business hours.

Features

• Electric latch retraction for remote unlatching and access control integration.
• Fail secure operation keeps the outside lever locked when power is lost.
• Key retracts latch for reliable mechanical override.
• Rated for 33" to 36" door widths.
• Operates on 24V DC power.
• Supplied less cylinder for cylinder flexibility.
• ETP escutcheon trim provides secure exterior lever access.
• Hex key dogging holds the latch retracted for latch-free operation.

Functional Details

The 56 electric latch retraction function uses a solenoid-driven mechanism to pull the latchbolt back, unlocking the opening remotely. In the fail secure (F) mode, removing power locks the exterior lever while the push bar continues to permit free egress from the interior. The device can be tied into access control, card readers, or automatic operators for coordinated entry.

• Electric latch retraction retracts the latch electrically for remote access and automatic operator applications.
• Fail secure: power off locks the outside lever.
• Key retracts latch for mechanical access.

Included Components

The device includes the 8800 series rim exit chassis, ETP exterior trim, and the integrated electric latch retraction solenoid assembly. A mortise cylinder is required and sold separately.
